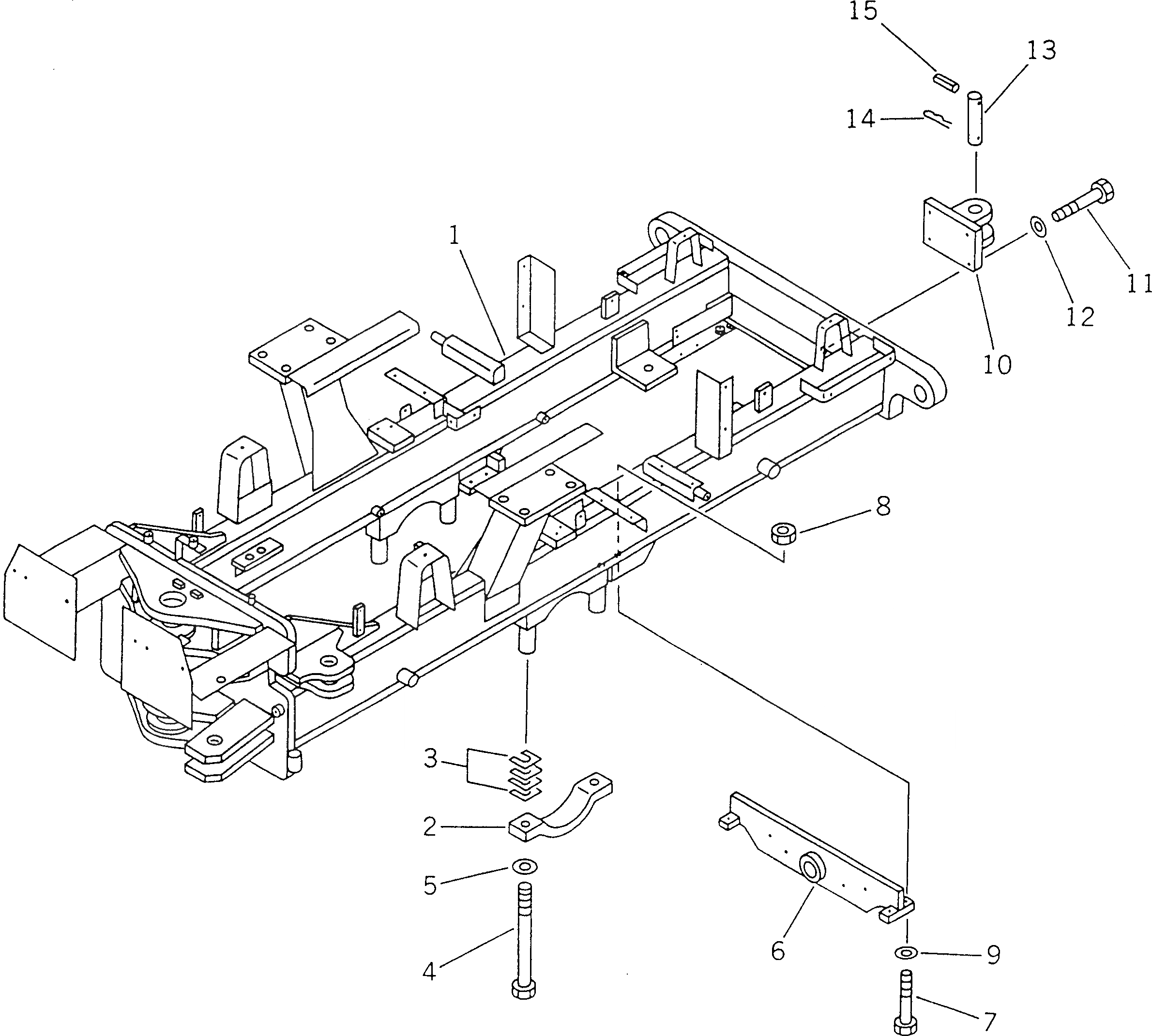

| 1 | 23B-46-18050 | FRAME,REAR | |
| 1 | 23B-46-12030 | FRAME,REAR | |
| 2 | 23B-46-12320 | CAP | |
| 3 | 23A-46-00120 | SHIM ASS'Y | |
| 3 | SHIM, 0.1MM | ||
| 3 | SHIM, 0.2MM | ||
| 3 | SHIM, 0.5MM | ||
| 4 | 01011-63080 | BOLT | |
| 5 | 01643-33080 | WASHER | |
| 6 | 23B-22-21270 | HANGER | |
| 7 | 01010-51675 | BOLT | |
| 8 | 01580-11613 | NUT | |
| 9 | 01643-31645 | WASHER | |
| 10 | 238-46-11810 | DRAWBAR | |
| 11 | 01010-52060 | BOLT | |
| 12 | 01643-32060 | WASHER | |
| 13 | 232-46-11711 | PIN | |
| 14 | 232-46-11920 | PIN,SNAP | |
| 15 | 04025-01065 | PIN,SNAP |
