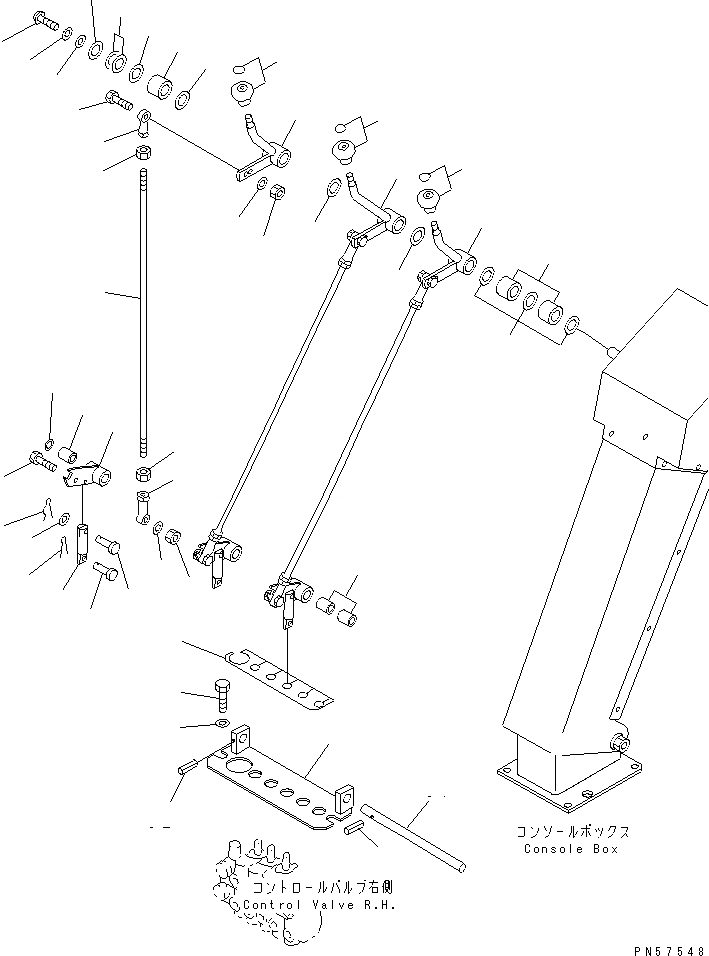

Запчасти гидравл рычаг управл-я¤ прав. грейдеры gd305a-1a s/n 6734-up Komatsu



1 23B-43-18912 LEVER,BLADE SIDE SHIFT
2 237-43-00061 KNOB ASS'Y,BLADE SIDE SHIFT
|2 237-43-17480 KNOB
|2 237-54-13231 PLATE¤ OPERATING
3 23B-43-18942 LEVER,LEANING
4 237-43-00121 KNOB ASS'Y,LEANING
|4 237-43-17490 KNOB
|4 237-54-13221 PLATE¤ OPERATING
5 23B-43-18912 LEVER,BLADE LIFT
6 237-43-00081 KNOB ASS'Y,BLADE LIFT
|6 237-43-17480 KNOB
|6 237-54-13211 PLATE¤ OPERATING
7 237-43-17440 COLLAR
8 237-43-17420 WASHER
9 23A-43-18190 WASHER
10 01220-40816 SCREW
11 01643-30823 WASHER
12 232-43-58380 SHIM¤ 0.2MM
|12 232-43-58370 SHIM¤ 0.5MM
13 23D-43-21361 ROD
14 04250-40847 END,ROD
15 01580-10806 NUT
16 04250-60847 END,ROD¤ L.H. THREAD
17 01508-40805 NUT,L.H. THREAD
18 235-43-18380 BOLT
19 01580-10806 NUT
20 04254-10823 SPACER
21 235-43-18380 BOLT
22 01580-10806 NUT
23 04254-10823 SPACER
24 23D-43-21191 BRACKET
25 01010-51025 BOLT
26 01643-31232 WASHER
27 23D-43-21870 LEVER
28 234-43-38440 BUSHING
29 23D-43-21430 COLLAR
30 01643-51645 WASHER
31 23D-43-21541 SHAFT
32 04025-00532 PIN,SPRING
33 04025-00524 PIN,SPRING
34 23D-43-21371 ROD
35 04205-10618 PIN
36 01641-20608 WASHER
37 233-43-27750 PIN,SNAP
38 235-43-18441 PIN
39 04050-11212 PIN,COTTER
40 23D-43-21721 COVER
