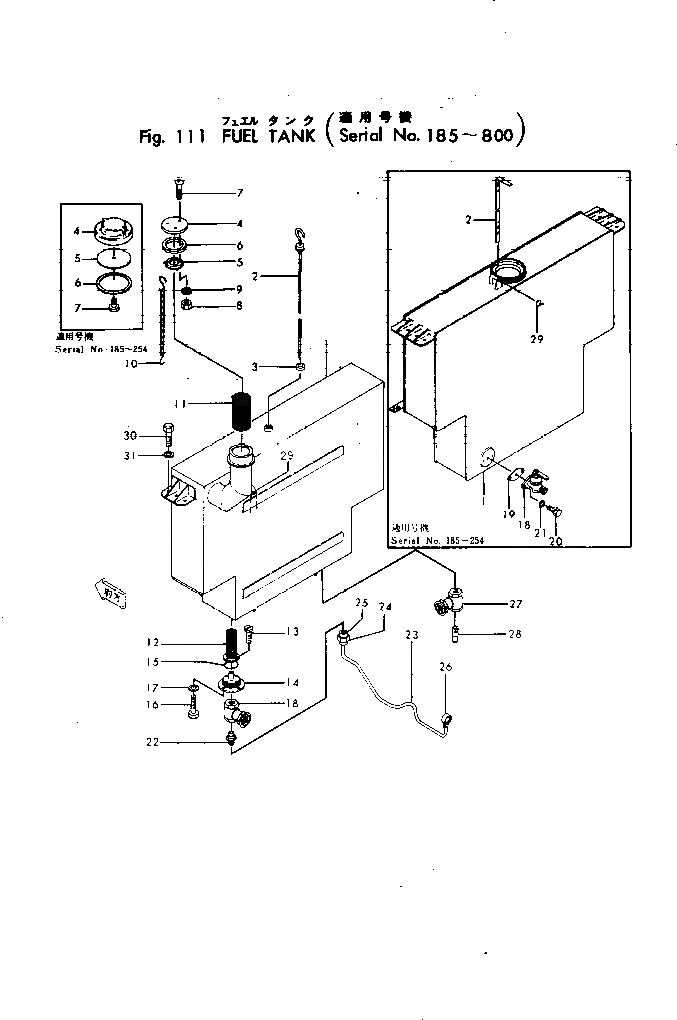

| |1 | 230-04-00014 | FUEL TANK ASS'Y | |
| |1 | 230-04-00013 | FUEL TANK ASS'Y | |
| |1 | 230-04-00012 | FUEL TANK ASS'Y | |
| 1 | 230-04-11114 | TANK | |
| |1 | 230-04-11113 | TANK | |
| |1 | 230-04-11112 | TANK | |
| 2 | 230-04-11122 | GAUGE | |
| |2 | 230-04-11121 | GAUGE | |
| 3 | 232-04-11230 | GASKET | |
| 4 | 232-04-11210 | FILLER | |
| |4 | GD371B107 | CAP | |
| |4 | FG30T506 | WOOL | |
| 5 | 232-04-11220 | LOCK | |
| |5 | GD371B109 | PLATE | |
| 6 | 232-04-11230 | GASKET | |
| |6 | GD371B106 | GASKET | |
| 7 | 01210-20612 | SCREW | |
| |7 | GD371B110 | BOLT | |
| 8 | 01500-30605 | NUT | |
| 9 | 01602-00619 | WASHER | |
| 10 | 232-04-11150 | CHAIN | |
| 11 | 232-04-11140 | STRAINER | |
| |11 | GD371B115 | STRAINER | |
| 12 | 232-04-11321 | STRAINER | |
| 13 | 01212-20612 | SCREW | |
| 14 | 232-04-11310 | COVER | |
| 15 | 07000-05075 | O-RING (KIT) | |
| 16 | 01000-31022 | BOLT | |
| 17 | 01602-01030 | WASHER | |
| 18 | 232-04-12121 | VALVE | |
| |18 | GD372B141 | VALVE | |
| 19 | GD371B119 | GASKET (KIT) | |
| 20 | 01000-30820 | BOLT | |
| 21 | 01602-00825 | WASHER | |
| 22 | 232-04-12130 | NIPPLE | |
| 23 | 230-04-11137 | TUBE | |
| |23 | 230-04-11135 | TUBE | |
| |23 | 230-04-11136 | TUBE | |
| |23 | 230-04-11135 | TUBE | |
| |23 | 230-04-11134 | TUBE | |
| 24 | 07200-01022 | SLEEVE | |
| 25 | 07201-01020 | NUT | |
| 26 | 07205-01033 | JOINT | |
| 27 | 232-04-11331 | VALVE | |
| 28 | 232-04-11341 | TUBE | |
| 29 | 4D115A7354 | CLIP | |
| 30 | 01000-31025 | BOLT | |
| 31 | 01602-01030 | WASHER |
