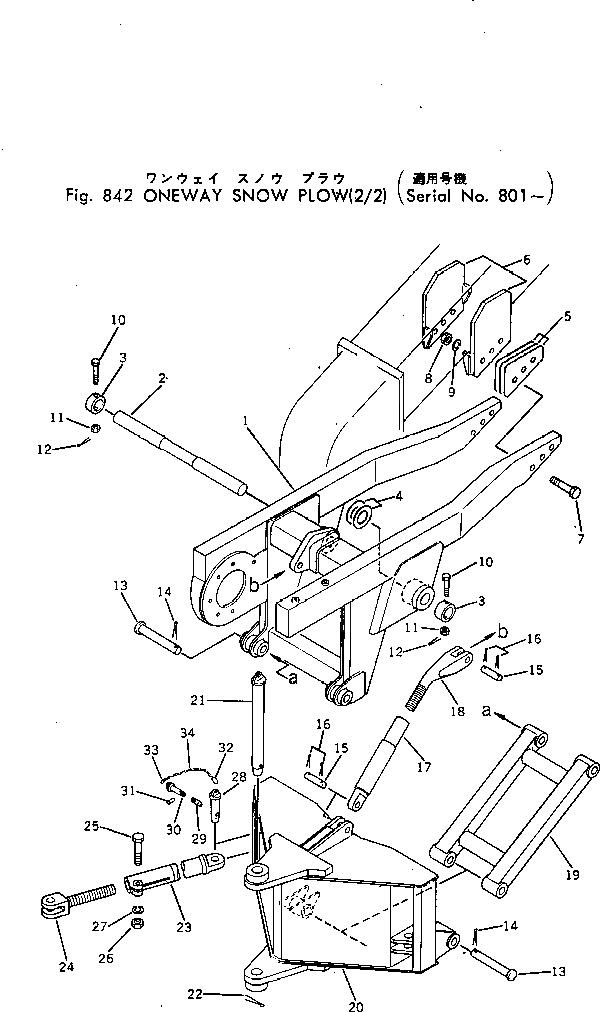

| |1 | 230-970-0131 | SUPPORT ASS'Y | |
| |1 | 230-970-0130 | SUPPORT ASS'Y | |
| 1 | 230-970-1410 | SUPPORT | |
| 2 | 233-70-13190 | SHAFT | |
| |2 | 230-970-1421 | SHAFT | |
| |2 | 230-970-1420 | SHAFT | |
| 3 | 230-970-1480 | COLLAR | |
| 4 | 230-970-1490 | SHIM¤ 1.6MM | |
| 5 | 230-970-1430 | SHIM¤ 1.6MM | |
| 6 | 230-970-1450 | PLATE | |
| 7 | 01010-52090 | BOLT | |
| |7 | 01000-32090 | BOLT | |
| 8 | 01580-12016 | NUT | |
| |8 | 01500-02016 | NUT | |
| 9 | 01602-22060 | WASHER | |
| 10 | 01012-51290 | BOLT | |
| |10 | 01002-31290 | BOLT | |
| 11 | 01590-11215 | NUT | |
| |11 | 01510-01215 | NUT | |
| 12 | 04050-13025 | PIN | |
| 13 | 232-970-1520 | PIN | |
| 14 | 04050-16060 | PIN | |
| 15 | 232-970-1840 | SHAFT | |
| 16 | 04050-15040 | PIN | |
| 17 | 230-970-5110 | ROD | |
| 18 | 230-970-5120 | JOINT | |
| 19 | 230-970-5130 | BEAM | |
| 20 | 230-970-5140 | SUPPORT | |
| 21 | 233-970-5320 | SHAFT | |
| 22 | 04050-16060 | PIN | |
| 23 | 233-970-5330 | SUPPORT | |
| 24 | 233-970-5340 | YOKE | |
| 25 | 01010-31680 | BOLT | |
| |25 | 01000-31680 | BOLT | |
| 26 | 01580-11613 | NUT | |
| |26 | 01500-01613 | NUT | |
| 27 | 01602-21648 | WASHER | |
| 28 | 233-970-5350 | PIN | |
| 29 | 233-970-5360 | PIN | |
| 30 | 233-970-5370 | PIN | |
| 31 | 04402-00414 | RIVET | |
| 32 | 232-64-11260 | RING | |
| 33 | 232-64-11270 | RING | |
| 34 | 232-64-11280 | CHAIN |
