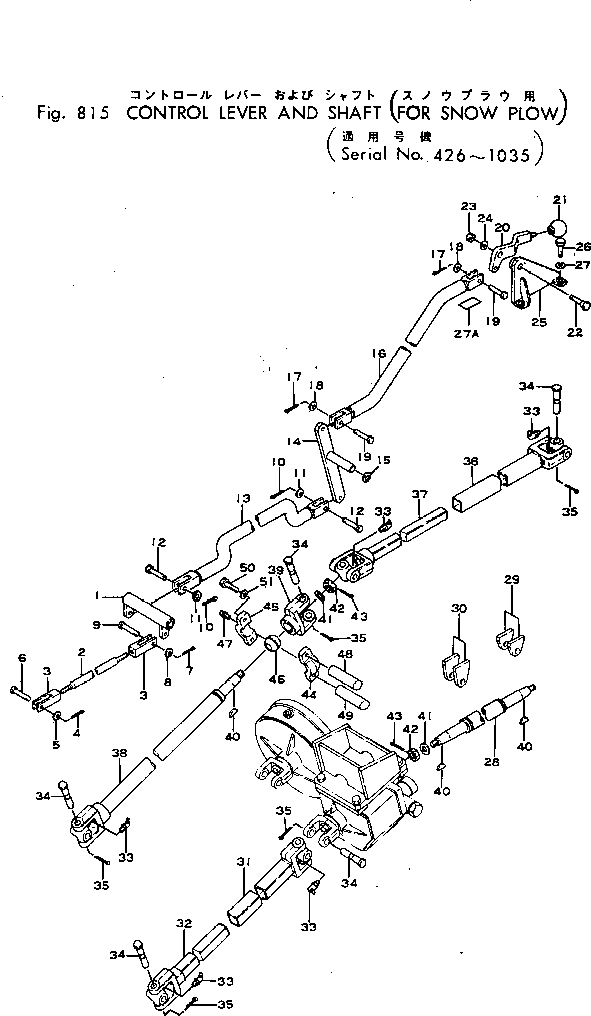

Запчасти рычаг управл-я и вал (для snow pниз.)(№-) грейдеры gd30-5m s/n 185-up Komatsu

\|1	230-970-0070	CONTROL LEVER ASS'Y
1	230-970-2610	LEVER
2	230-970-2620	ROD
3	04211-00844	YOKE
4	04050-02012	PIN
5	01641-20812	WASHER
6	04205-00822	PIN
7	04050-07012	PIN
8	01641-20814	WASHER
9	04025-00822	PIN
10	04050-02012	PIN
11	01641-20810	WASHER
12	04205-00822	PIN
13	230-970-2650	ROD
\|13	230-71-16310	YOKE
14	230-970-2630	LEVER
15	230-970-2640	SPACER
16	230-970-2660	ROD
\|16	04211-00844	YOKE
17	04050-02012	PIN
18	01641-00810	WASHER
19	04205-00822	PIN
20	230-970-2670	LEVER
21	310-43-16150	KNOB
22	230-71-19380	SHAFT
23	01500-31210	NUT
24	01602-01236	WASHER
25	230-970-2680	BRACKET
26	01000-30825	BOLT
27	01602-00825	WASHER
27A	230-970-2790	PLATE
\|28	230-970-0050	SHAFT ASS'Y
28	230-970-2310	SHAFT
29	230-970-2320	BRACKET
30	230-970-2330	BRACKET
31	230-42-13142	SHAFT
\|31	230-42-13180	YOKE
\|31	232-40-12230	PIN
\|31	232-40-12240	SPIDER
32	230-42-13153	SHAFT
\|32	230-42-13190	YOKE
\|32	232-40-12230	PIN
\|32	232-40-12240	SPIDER
33	07020-00675	FITTING
34	232-40-12270	PIN
35	04050-04025	PIN
36	230-970-2390	SHAFT
\|36	230-42-13180	YOKE
\|36	232-40-12230	PIN
\|36	232-40-12240	SPIDER
37	230-42-13132	SHAFT
\|37	230-42-13190	YOKE
\|37	232-42-12230	PIN
\|37	232-42-12240	JOINT
38	230-970-2760	SHAFT
\|38	232-40-12260	YOKE
\|38	232-40-12320	SHAFT
\|38	232-40-12230	PIN
\|38	232-40-12240	SPIDER
39	232-40-12350	YOKE
40	04010-10725	KEY
41	01640-21629	WASHER
42	01511-31612	NUT
43	04050-04025	PIN
44	230-970-2360	BEARING
45	230-970-2370	BEARING
46	230-970-2380	BEARING
47	07020-00000	FITTING
48	230-970-2340	BOSS
49	230-950-2350	BOSS
50	01000-31040	BOLT
51	01602-01030	WASHER
