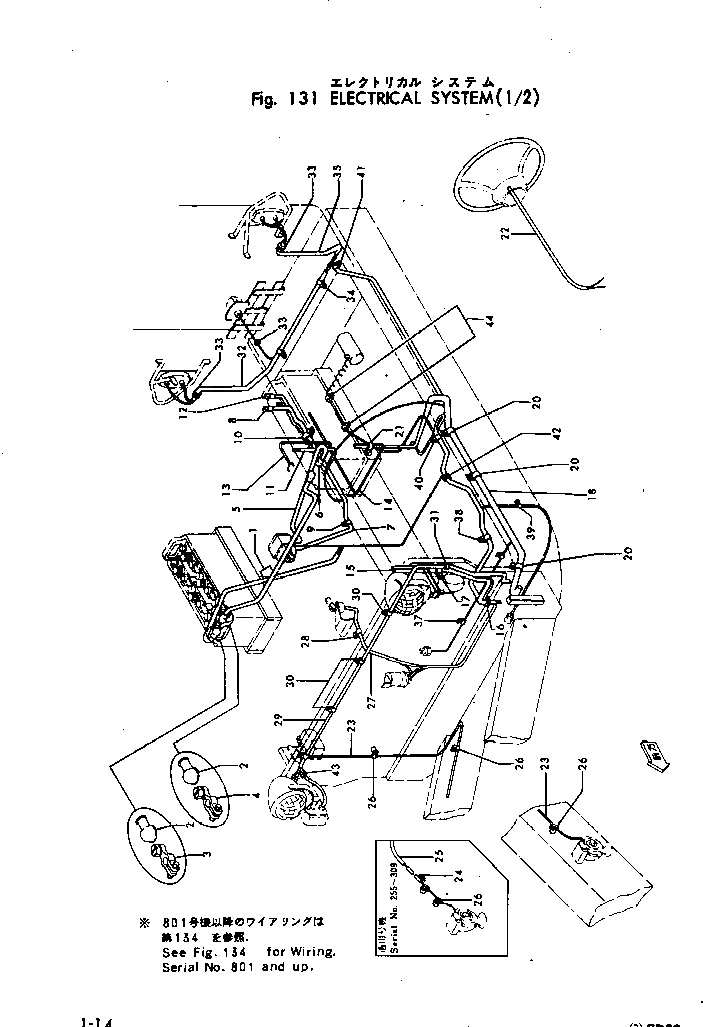

Запчасти электрика (/)(№8-8) грейдеры gd30-5m s/n 185-up Komatsu



1 230-06-13113 WIRE
2 232-06-11970 CAP
2 232-06-11960 CAP
3 08000-00000 TERMINAL, (+)
3 K7390S175 TERMINAL, (+)
4 08000-00001 TERMINAL, (-)
4 K3790S160 TERMINAL, (-)
5 230-06-13123 WIRE
6 232-06-11960 CAP
6 232-06-11960 CAP
7 230-06-13134 WIRE
7 230-06-13133 WIRE
8 232-06-11960 CAP
9 04434-01508 CLIP
10 230-06-14191 CLIP
10 01000-30614 BOLT
10 01500-30605 NUT
10 01602-00619 WASHER
11 230-06-13144 WIRE
11 230-06-13143 WIRE
12 232-06-11960 CAP
13 230-06-13154 WIRE
13 230-06-13153 WIRE
14 230-06-13184 WIRE
14 230-06-13183 WIRE
15 230-06-13194 WIRE
15 230-06-13193 WIRE
15 230-06-13194 WIRE
15 230-06-13193 WIRE
16 230-06-14130 GROMMET
17 230-06-14191 CLIP
17 01000-30614 BOLT
17 01500-30605 NUT
17 01602-00619 WASHER
18 230-06-13246 WIRE
18 230-06-13245 WIRE
18 230-06-13244 WIRE
18 230-06-13245 WIRE
18 230-06-13244 WIRE
18 230-06-13243 WIRE
19 04434-02008 CLIP
19 01000-30612 BOLT
19 01602-00619 WASHER
20 08036-11210 CLIP
20 04434-01508 CLIP
20 04434-01508 CLIP
20 01010-30812 BOLT
20 01010-30612 BOLT
20 01010-30612 BOLT
20 01602-00825 WASHER
20 01602-00619 WASHER
20 01602-00619 WASHER
21 08036-11210 CLIP
21 04434-01508 CLIP
21 230-06-14191 CLIP
21 01010-30812 BOLT
21 01000-30816 BOLT
21 01000-30614 BOLT
21 01500-30605 NUT
21 01602-00825 WASHER
21 01602-00619 WASHER
22 230-06-13274 WIRE
22 230-06-13273 WIRE
22 230-06-13274 WIRE
22 230-06-13273 WIRE
23 230-06-13325 WIRE
23 230-06-13324 WIRE
23 230-06-13323 WIRE
24 230-06-14150 PIPE
25 230-06-14160 PIPE
25 01000-30612 BOLT
25 01602-00619 WASHER
26 08036-11210 CLIP
26 04434-00608 CLIP
26 04434-00608 CLIP
26 04434-00608 CLIP
26 04434-00608 CLIP
26 04434-00608 CLIP
26 01010-30820 BOLT
26 01010-30820 BOLT
26 01010-30612 BOLT
26 01000-30610 BOLT
26 01010-30612 BOLT
26 01000-30610 BOLT
26 01602-00825 WASHER
26 01602-00825 WASHER
26 01602-00619 WASHER
26 01602-00619 WASHER
26 01602-00619 WASHER
26 01602-00619 WASHER
27 230-06-13354 WIRE
27 230-06-13353 WIRE
27 230-06-13354 WIRE
27 230-06-13353 WIRE
28 08036-11210 CLIP
28 04434-01508 CLIP
28 01000-30612 BOLT
28 01602-00619 WASHER
29 230-06-13385 WIRE
29 230-06-13384 WIRE
29 230-06-13383 WIRE
29 230-06-13384 WIRE
29 230-06-13383 WIRE
29 08022-04002 CONNECTOR
30 08036-11210 CLIP
30 04434-00808 CLIP
30 04434-00808 CLIP
31 04434-01208 CLIP
32 230-06-13395 WIRE
32 230-06-13394 WIRE
32 230-06-13393 WIRE
32 230-06-13394 WIRE
32 230-06-13393 WIRE
32 08022-04004 CONNECTOR
32 08022-04002 CONNECTOR
33 08037-01601 GROMMET
33 364-06-13430 GROMMET
34 08036-11210 CLIP
34 230-06-14180 CLIP
34 230-06-14180 CLIP
34 01010-30812 BOLT
34 01010-30612 BOLT
34 01010-30612 BOLT
34 01602-00825 WASHER
34 01602-00619 WASHER
34 01602-00619 WASHER
35 230-06-13415 WIRE
35 230-06-13414 WIRE
35 230-06-13413 WIRE
35 230-06-13414 WIRE
35 230-06-13413 WIRE
35 08022-04002 CONNECTOR
36 364-06-13430 GROMMET
37 08036-10610 CLIP
37 04434-00808 CLIP
38 230-06-14180 CLIP
38 01000-30614 BOLT
38 01500-30605 NUT
38 01602-00619 WASHER
39 08036-10810 CLIP
39 230-06-14210 CLIP
39 01010-30812 BOLT
39 01010-30612 BOLT
39 01602-00825 WASHER
39 01602-00619 WASHER
40 08036-11210 CLIP
40 04434-01508 CLIP
40 230-06-14180 CLIP
40 01010-50812 BOLT
40 01000-30816 BOLT
40 01000-30612 BOLT
40 01500-30605 NUT
40 01602-00825 WASHER
40 01602-00619 WASHER
41 230-06-14180 CLIP
41 01010-30612 BOLT
41 01602-00619 WASHER
42 230-06-14140 GROMMET
43 230-06-14230 GROMMET
44 08036-10810 CLIP
