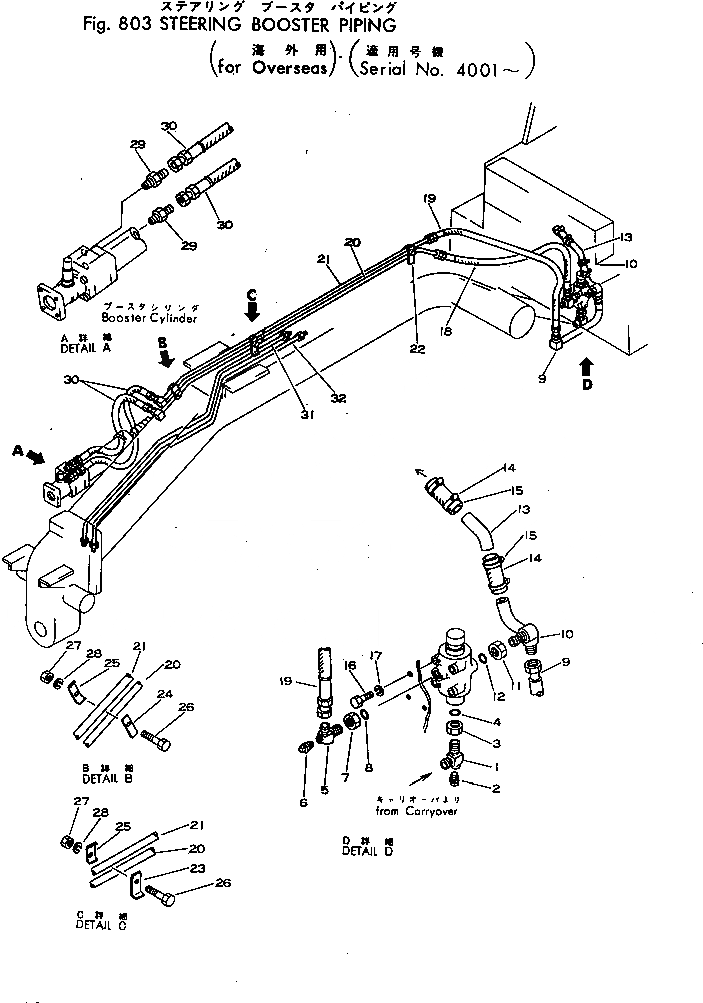

| 1 | 07231-10628 | ELBOW | |
| 2 | 07042-00108 | PLUG | |
| 3 | 07239-12410 | NUT | |
| 4 | 07002-12434 | O-RING | |
| 5 | 07231-10522 | ELBOW | |
| 6 | 07042-00108 | PLUG | |
| 7 | 07239-12410 | NUT | |
| 8 | 07002-12434 | O-RING | |
| 9 | 233-41-14350 | TUBE | |
| 10 | 233-41-14186 | ELBOW | |
| 11 | 07239-12410 | NUT | |
| 12 | 07002-12434 | O-RING | |
| 13 | 233-41-14194 | TUBE | |
| 14 | 07260-22613 | HOSE | |
| 15 | 07281-00419 | CLAMP | |
| 16 | 01010-50825 | BOLT | |
| 17 | 01602-20825 | WASHER | |
| 18 | 07104-20508 | HOSE | |
| 19 | 07104-20511 | HOSE | |
| 20 | 233-41-14146 | TUBE | |
| 21 | 233-41-14166 | TUBE | |
| 22 | 233-41-14360 | PLATE (WELDED) | |
| 23 | 232-46-11520 | PLATE (WELDED) | |
| 24 | 233-41-15190 | PLATE (WELDED) | |
| 25 | 232-60-14930 | CLAMP | |
| 26 | 01010-51045 | BOLT | |
| 27 | 01580-11008 | NUT | |
| 28 | 01602-21030 | WASHER | |
| 29 | 234-60-14841 | NIPPLE | |
| 30 | 07104-20508 | HOSE | |
| 31 | 233-41-15230 | TUBE | |
| 32 | 233-41-15240 | TUBE |
