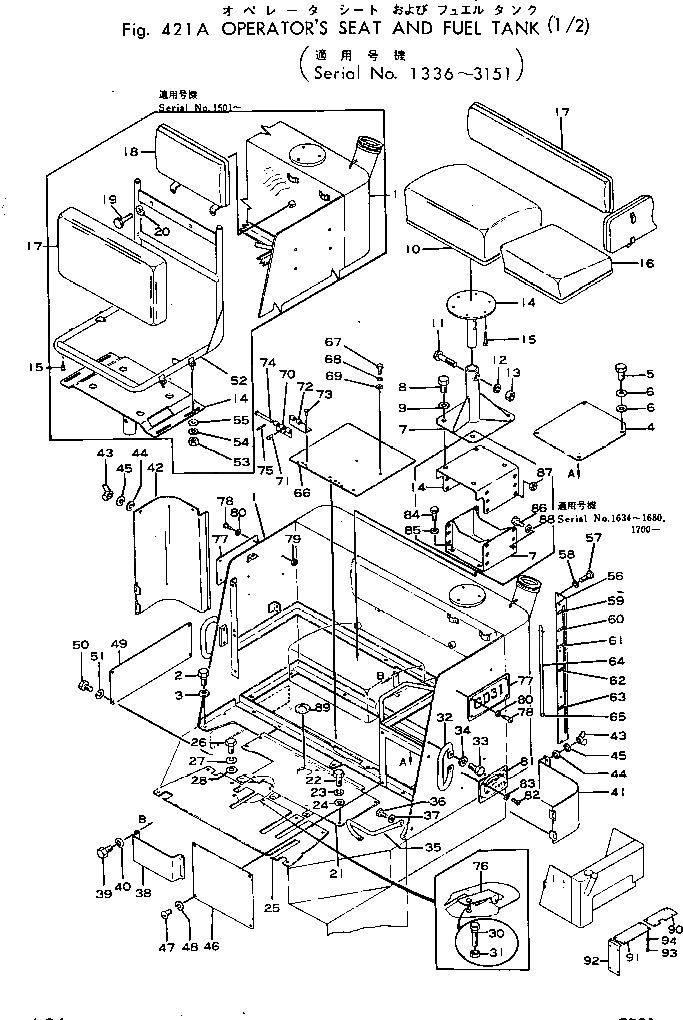

Запчасти сиденье оператора и топливн. бак. (/) грейдеры gd31-3h s/n 1501-up Komatsu

1	232-54-31116	FRAME
\|1	232-54-31115	FRAME
\|1	232-54-31114	FRAME
\|1	232-54-31113	FRAME
\|1	232-54-31112	FRAME
\|1	232-54-31111	FRAME
\|1	232-54-31110	FRAME
\|1	232-54-31111	FRAME
\|1	232-54-31110	FRAME
2	01010-31225	BOLT
\|2	01000-31225	BOLT
3	01602-01236	WASHER
4	232-54-31722	PLATE
\|4	232-54-31721	PLATE
\|4	232-54-31722	PLATE
\|4	232-54-31721	PLATE
5	01010-30816	BOLT
\|5	01000-30816	BOLT
6	01642-20810	WASHER
\|6	01642-20810	WASHER
\|6	01602-00825	WASHER
7	232-54-31731	SUPPORT
\|7	232-54-31730	SUPPORT
\|7	232-54-31731	SUPPORT
\|7	232-54-31730	SUPPORT
8	01010-31425	BOLT
\|8	01000-31430	BOLT
\|8	01000-31225	BOLT
\|8	01000-31430	BOLT
\|8	01000-31225	BOLT
9	01602-01442	WASHER
\|9	01602-01236	WASHER
\|9	01602-01442	WASHER
\|9	01602-01236	WASHER
10	09407-00000	SEAT ASS'Y
\|10	234-54-12500	SEAT ASS'Y
\|10	09400-00000	SEAT
\|10	234-54-12500	SEAT ASS'Y
\|10	09400-00000	SEAT
10A	09407-00020	BRACKET
\|10A	09407-00020	BRACKET
10B	09407-00030	CUSHION
\|10B	09407-00030	CUSHION
10C	09407-00040	CUSHION
\|10C	09407-00040	CUSHION
11	01000-31895	BOLT
\|11	01000-31895	BOLT
12	01602-01854	WASHER
\|12	01602-01854	WASHER
13	01500-31816	NUT
\|13	01500-31816	NUT
14	232-54-11325	SUPPORT
\|14	232-54-11324	SUPPORT
\|14	232-54-11323	SUPPORT
\|14	232-54-11324	SUPPORT
\|14	232-54-11323	SUPPORT
15	01380-20626	SCREW
16	232-54-11310	CUSHION
17	130-57-11153	CUSHION
\|17	130-57-11153	CUSHION
18	232-54-11380	CUSHION
19	01010-31020	BOLT
\|19	01000-31020	BOLT
20	01602-01030	WASHER
21	232-54-11281	PLATE
\|21	232-54-11218	PLATE
\|21	232-54-11217	PLATE
\|21	232-54-11216	PLATE
\|21	232-54-11280	PLATE
22	01010-31220	BOLT
\|22	01000-31220	BOLT
23	01602-01236	WASHER
24	01642-21216	WASHER
25	233-54-11238	PLATE
\|25	233-54-11237	PLATE
\|25	233-54-11236	PLATE
\|25	233-54-11235	PLATE
\|25	233-54-11234	PLATE
\|25	233-54-11235	PLATE
\|25	233-54-11234	PLATE
26	01010-31220	BOLT
\|26	01000-31220	BOLT
27	01602-01236	WASHER
28	01642-21216	WASHER
30	01016-31040	BOLT
\|30	232-54-11271	BOLT
\|30	232-54-11270	BOLT
31	01580-01008	NUT
\|31	01501-31006	NUT
32	232-54-11171	HANDLE
33	01010-31220	BOLT
\|33	01000-31220	BOLT
34	01602-01236	WASHER
35	232-54-11761	STEP
\|35	232-54-11760	STEP
36	01010-31220	BOLT
\|36	01000-31220	BOLT
37	01602-01236	WASHER
38	232-54-11730	COVER
\|38	232-54-11730	COVER
39	01000-31012	BOLT
\|39	01000-31012	BOLT
40	01602-01030	WASHER
\|40	01602-01030	WASHER
41	232-54-11750	COVER
42	232-54-11740	COVER
43	232-54-11770	NUT
44	01640-20816	WASHER
45	01602-00825	WASHER
46	232-54-11711	PLATE
\|46	232-54-11710	PLATE
47	01010-30816	BOLT
\|47	01210-40816	SCREW
48	01602-00825	WASHER
49	232-54-11720	COVER
50	01010-31220	BOLT
51	01602-01236	WASHER
52	232-54-11370	FRAME
\|52	232-54-11370	FRAME
53	01500-31008	NUT
\|53	01500-31008	NUT
54	01602-01030	WASHER
\|54	01602-01030	WASHER
55	01643-01032	WASHER
\|55	01643-01032	WASHER
56	232-54-31150	COVER
57	01010-30610	BOLT
58	01602-00619	WASHER
59	232-54-31160	PLATE
60	232-54-31170	PLATE
61	232-54-31180	PLATE
62	232-54-31190	PLATE
63	232-54-31210	PLATE
64	07270-01077	TUBE
65	04059-01016	WIRE
66	232-54-31123	PLATE
\|66	232-54-31122	PLATE
\|66	232-54-31121	PLATE
\|66	232-54-31120	PLATE
\|66	232-54-31121	PLATE
\|66	232-54-31120	PLATE
67	01010-31225	BOLT
\|67	01000-31225	BOLT
\|67	01000-31225	BOLT
\|67	01000-31225	BOLT
\|67	01000-31225	BOLT
68	01602-01236	WASHER
\|68	01602-01236	WASHER
\|68	01602-01236	WASHER
\|68	01602-01236	WASHER
69	01642-21216	WASHER
\|69	01642-21216	WASHER
\|69	01642-21216	WASHER
\|69	01642-21216	WASHER
70	232-54-31140	HINGE
\|70	232-54-31140	HINGE
71	04411-00516	RIVET
\|71	04411-00516	RIVET
72	232-54-31130	HINGE
\|72	232-54-31130	HINGE
73	04411-00516	RIVET
\|73	04411-00516	RIVET
74	232-854-1250	PIN
\|74	232-854-1250	PIN
75	04050-02012	PIN
\|75	04050-02012	PIN
76	232-54-11242	PEDAL
77	09691-02317	PLATE¤ MARK
\|77	233-54-11181	PLATE
\|77	233-54-11180	PLATE¤ NAME
78	232-54-14140	SCREW
79	01500-30404	NUT
80	01601-00410	WASHER
81	09602-01643	PLATE¤ NAME
\|81	09600-01643	PLATE¤ NAME
82	232-54-14141	SCREW
\|82	232-54-14140	SCREW
83	01601-00410	WASHER
84	01010-31425	BOLT
\|84	01000-31430	BOLT
\|84	01000-31430	BOLT
85	01602-01442	WASHER
\|85	01602-01442	WASHER
86	01010-31225	BOLT
\|86	01000-31225	BOLT
\|86	01000-31225	BOLT
87	01580-01210	NUT
\|87	01500-31210	NUT
\|87	01500-31210	NUT
88	01602-01236	WASHER
\|88	01602-01236	WASHER
89	232-54-11780	COVER
90	232-54-31910	COVER
91	232-54-31920	COVER
92	232-54-31930	COVER
93	01011-31010	BOLT
94	01602-01030	WASHER
