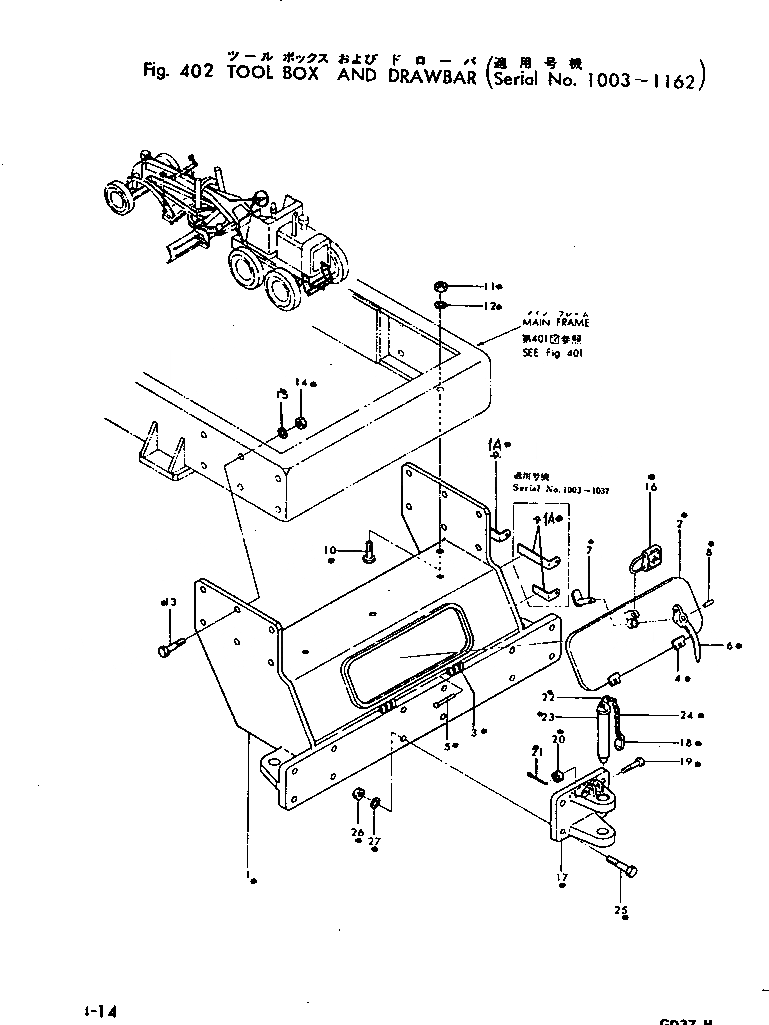

| |1 | 232-46-00060 | TOOL BOX ASS'Y | |
| 1 | GD372-L501A | BOX | |
| 1A | BRACKET | ||
| |1A | BRACKET | ||
| |1A | BRACKET | ||
| 2 | 232-46-13222 | COVER | |
| 3 | GD372-L507A | HINGE | |
| 4 | 232-46-13240 | HINGE | |
| 5 | 232-46-13250 | PIN | |
| 6 | 232-46-13261 | KNOB | |
| 7 | 232-46-13272 | LEVER | |
| 8 | 232-46-13280 | PIN | |
| 10 | 01000-31645 | BOLT | |
| 11 | 01500-01613 | NUT | |
| 12 | 01602-01648 | WASHER | |
| 13 | 01000-31670 | BOLT | |
| 14 | 01500-01613 | NUT | |
| 15 | 01602-01648 | WASHER | |
| 16 | 232-46-13310 | PADLOCK | |
| |17 | 232-46-00030 | DRAWBAR ASS'Y | |
| 17 | GD37-L531 | DRAWBAR | |
| 18 | GD37-L532 | LATCH | |
| 19 | GD37-L535 | BOLT | |
| 20 | 01511-00808 | NUT | |
| 21 | 04050-02018 | PIN | |
| 22 | GD37-L533 | RING | |
| 23 | GD372-L504 | PIN | |
| 24 | HD150-L173 | CHAIN | |
| 25 | 01000-31675 | BOLT | |
| 26 | 01500-01613 | NUT | |
| 27 | 01602-01648 | WASHER |
