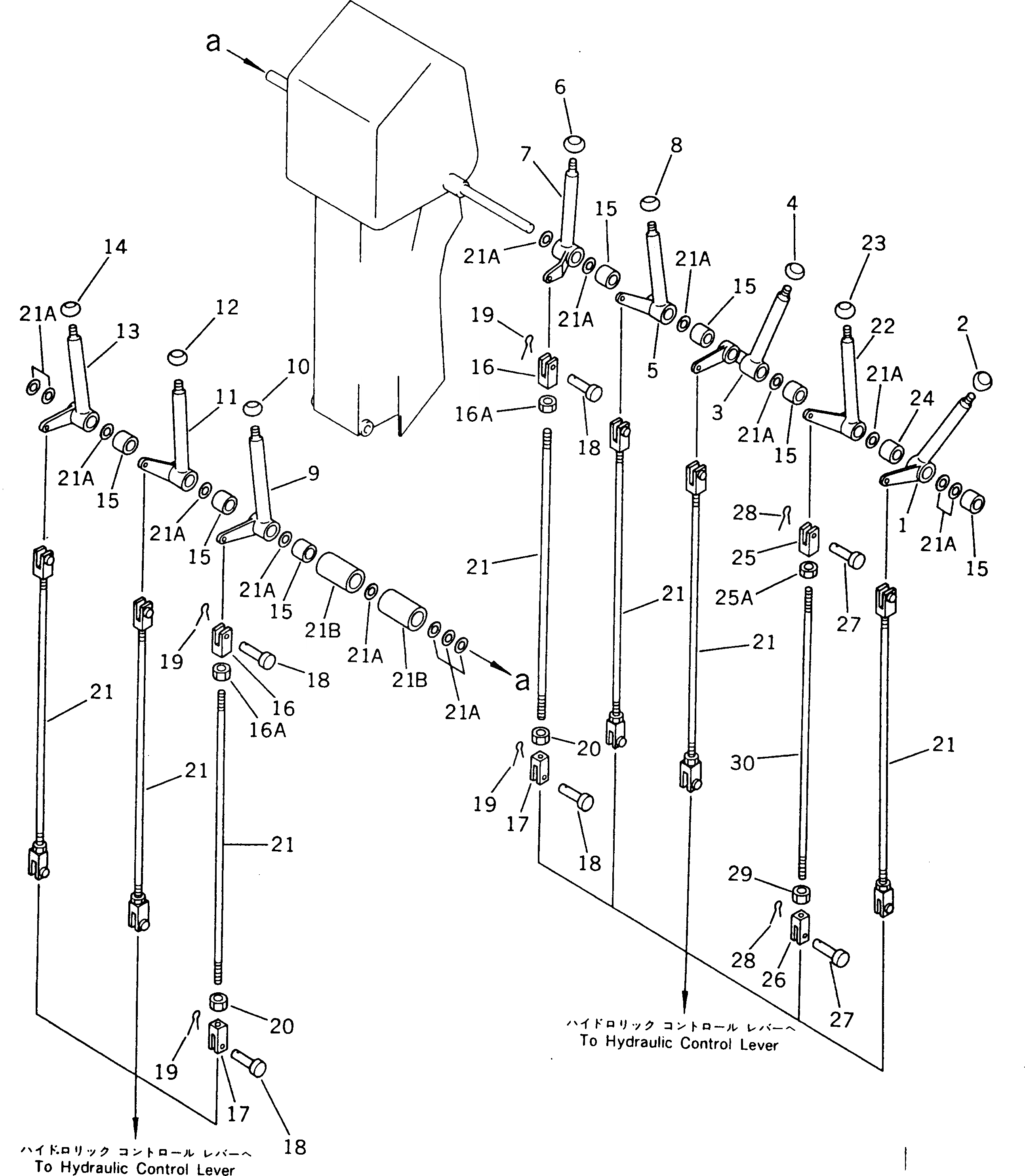

Запчасти гидравл рычаг управл-я (/)(№-9) грейдеры gd405a-1 s/n 50002-up Komatsu

1	233-43-28580	LEVER,BLADE LIFT¤ L.H.
\|1	233-43-27660	LEVER,BLADE LIFT¤ L.H.
2	237-43-00080	KNOB ASS'Y,BLADE LIFT
\|2	237-43-17480	KNOB
\|2	237-54-13210	PLATE¤ OPERATING
3	233-43-28590	LEVER,CIRCLE REVERSE
\|3	233-43-27650	LEVER,CIRCLE REVERSE
4	237-43-00070	KNOB ASS'Y
\|4	237-43-17480	KNOB
\|4	237-54-13250	PLATE¤ OPERATING
5	233-43-28570	LEVER,ARTICULATE
\|5	233-43-27680	LEVER,ARTICULATE
6	237-43-00100	KNOB ASS'Y,ARTICULATE
\|6	237-43-17490	KNOB
\|6	237-54-13260	PLATE¤ OPERATING
7	233-43-28610	LEVER,DRAWBAR SHIFT
\|7	233-43-27640	LEVER,DRAWBAR SHIFT
\|8	232-43-00120	KNOB ASS'Y,DRAWBAR SHIFT
8	237-43-17480	KNOB
\|8	232-43-18280	PLATE¤ OPERATING
9	233-43-28530	LEVER,BLADE SHIFT
\|9	233-43-27610	LEVER,BLADE SHIFT
10	237-43-00060	KNOB ASS'Y,BLADE SHIFT
\|10	237-43-17480	KNOB
\|10	237-54-13230	PLATE¤ OPERATING
11	233-43-28520	LEVER,LEANING
\|11	233-43-27620	LEVER,LEANING
\|12	237-43-00120	KNOB ASS'Y,LEANING
12	237-43-17490	KNOB
\|12	237-54-13220	PLATE¤ OPERATING
13	233-43-28510	LEVER,BLADE LIFT¤ R.H.
\|13	233-43-27630	LEVER,BLADE LIFT¤ R.H.
14	237-43-00080	KNOB ASS'Y,BLADE
\|14	237-43-17480	KNOB
\|14	237-54-13210	PLATE¤ OPERATING
15	234-885-1610	BUSHING
\|15	234-885-1620	BUSHING
16	04211-20844	YOKE
16A	01580-10806	NUT
17	04221-20844	YOKE
18	04205-10822	PIN
\|19	04050-12012	PIN
19	234-43-18710	PIN
20	01508-10805	NUT¤ L.H. THREAD
21	233-43-27280	ROD
21A	237-43-17420	WASHER
\|21A	237-43-17420	WASHER
21B	237-43-27350	COLLAR
22	233-43-28560	LEVER
\|22	233-43-27670	LEVER
\|23	237-43-00090	KNOB ASS'Y,SCARIFIER
\|23	233-43-00060	KNOB ASS'Y,V-PLOW
\|23	237-43-17480	KNOB
23	237-43-13270	PLATE¤ OPERATING
\|23	232-43-18470	PLATE¤ MARK,SCARIFIER
\|23	232-43-18470	PLATE¤ MARK,V-PLOW
24	234-885-1610	BUSHING
\|24	234-885-1620	BUSHING
25	04211-20844	YOKE
25A	01580-10806	NUT
26	04221-20844	YOKE
27	04205-10822	PIN
28	234-43-18110	PIN
\|28	04050-12012	PIN
29	01508-20805	NUT
30	233-43-27280	ROD
