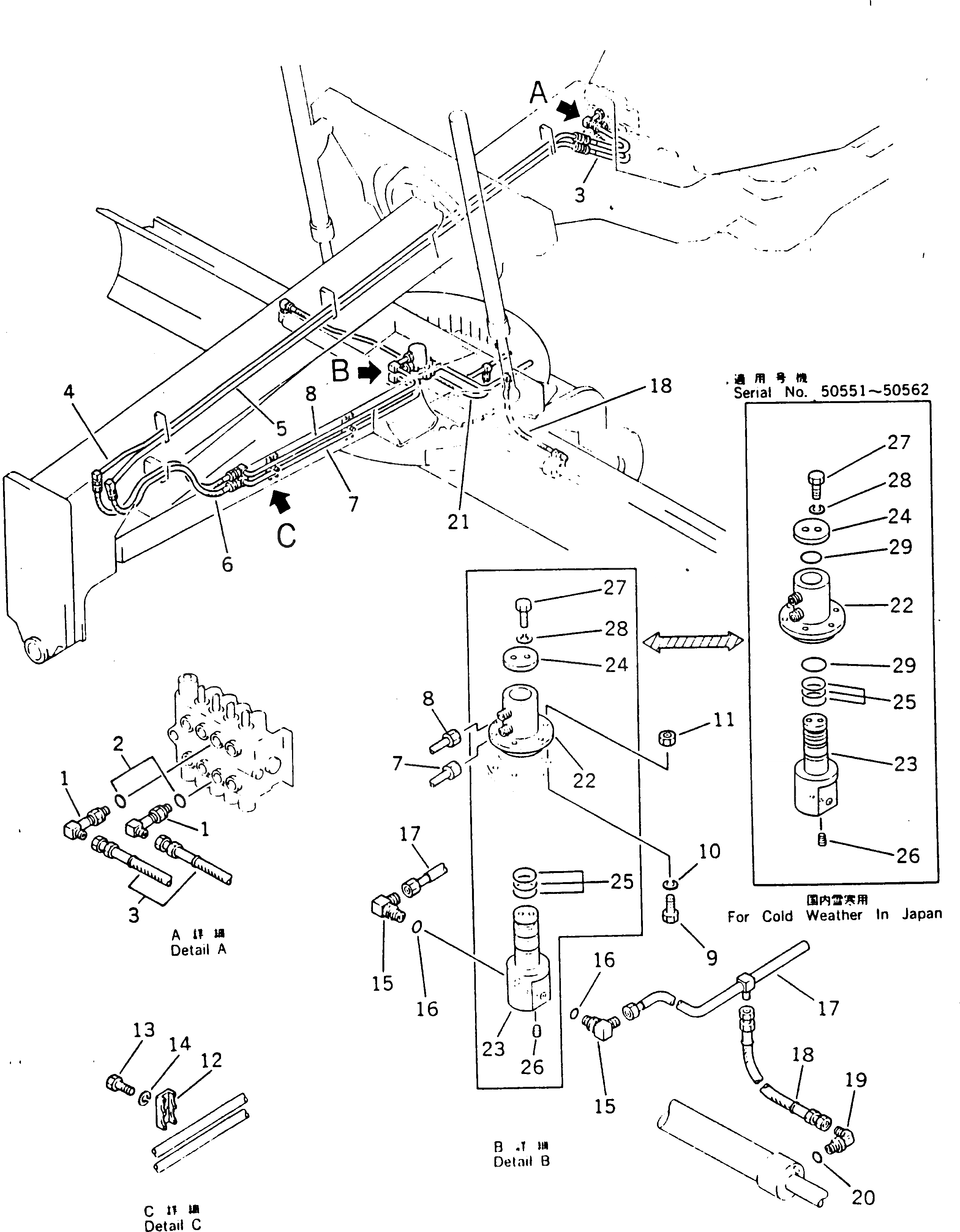

| 1 | 238-60-14251 | ELBOW | |
| |1 | 238-60-14250 | ELBOW | |
| 2 | 07002-12034 | O-RING | |
| 3 | 07113-00309 | HOSE | |
| 4 | 233-60-24130 | TUBE | |
| 5 | 233-60-24140 | TUBE | |
| 6 | 07108-20312 | HOSE | |
| 7 | 238-60-14371 | TUBE | |
| 8 | 238-60-14361 | TUBE | |
| 9 | 01010-51245 | BOLT | |
| |9 | 01010-51245 | BOLT | |
| 10 | 01602-01236 | WASHER | |
| |10 | 01602-01236 | WASHER | |
| 11 | 01580-11210 | NUT | |
| |11 | 01580-11210 | NUT | |
| 12 | 232-60-54830 | CLIP | |
| 13 | 01010-51020 | BOLT | |
| 14 | 01602-21030 | WASHER | |
| 15 | 07235-10422 | ELBOW | |
| 16 | 07002-12034 | O-RING | |
| 17 | 233-60-25190 | TUBE | |
| 18 | 07108-20306 | HOSE | |
| 19 | 07235-10315 | ELBOW | |
| 20 | 07002-12034 | O-RING | |
| 21 | 07108-20308 | HOSE | |
| |22 | 232-60-00362 | JOINT ASS'Y | |
| |22 | 232-60-00360 | JOINT ASS'Y | |
| 22 | 232-60-54711 | BODY | |
| |22 | 232-60-54710 | BODY | |
| 23 | 232-60-54720 | FLANGE | |
| 24 | 232-60-54730 | PLATE | |
| 25 | 07000-13050 | O-RING | |
| 26 | 07043-00211 | PLUG | |
| 27 | 01010-51225 | BOLT | |
| 28 | 01602-21236 | WASHER | |
| 29 | 07000-12065 | O-RING |
