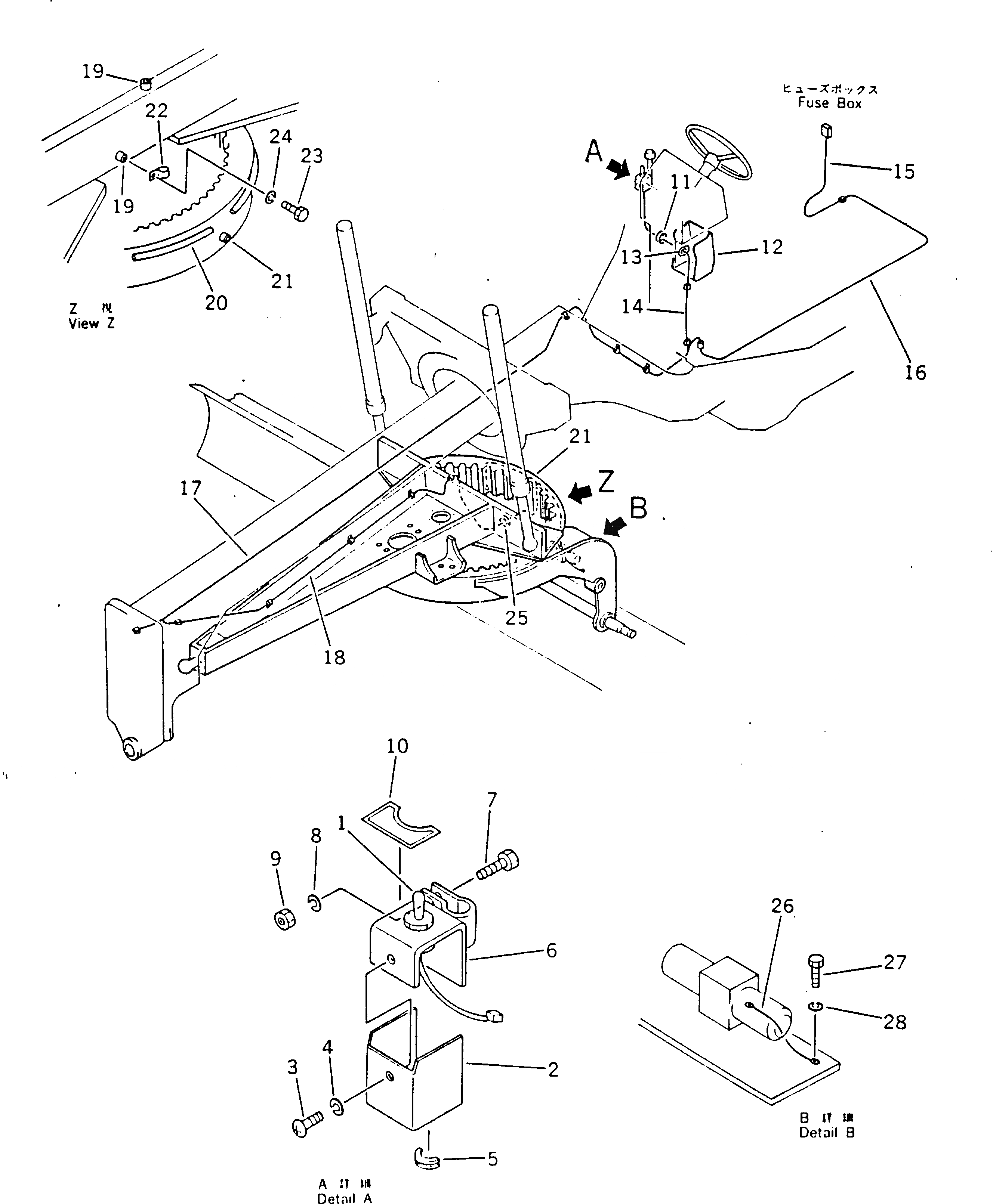

Запчасти регулир. отвал электропроводка грейдеры gd405a-1 s/n 50002-up Komatsu



1 233-870-6990 SWITCH
1 233-870-6990 SWITCH
1 233-870-6990 SWITCH
1 233-870-6990 SWITCH
2 233-870-6970 COVER
2 233-870-6970 COVER
2 233-870-6970 COVER
2 233-870-6970 COVER
3 01220-40512 SCREW
3 01220-40512 SCREW
3 01220-40512 SCREW
3 01220-40512 SCREW
4 01602-20513 WASHER
4 01602-20513 WASHER
4 01602-20513 WASHER
4 01602-20513 WASHER
5 233-870-6980 GROMMET
5 233-870-6980 GROMMET
5 233-870-6980 GROMMET
5 233-870-6980 GROMMET
6 233-870-6950 BRACKET
6 233-870-6950 BRACKET
6 233-870-6950 BRACKET
6 233-870-6950 BRACKET
7 01010-50620 BOLT
7 01010-50620 BOLT
7 01010-50620 BOLT
7 01010-50620 BOLT
8 01602-20619 WASHER
8 01602-20619 WASHER
8 01602-20619 WASHER
8 01602-20619 WASHER
9 01580-00605 NUT
9 01580-00605 NUT
9 01580-00605 NUT
9 01580-00605 NUT
10 233-53-21530 PLATE
10 233-53-21530 PLATE
10 233-53-21530 PLATE
10 233-53-21530 PLATE
11 08034-00414 BAND
11 08034-00414 BAND
11 08034-00414 BAND
11 08034-00414 BAND
12 233-870-6960 COVER,(MODIFIED PARTS)
12 233-870-6960 COVER,(MODIFIED PARTS)
12 233-870-6960 COVER,(MODIFIED PARTS)
12 233-870-6960 COVER,(MODIFIED PARTS)
13 08037-02512 GROMMET
13 08037-02512 GROMMET
13 08037-02512 GROMMET
13 08037-02512 GROMMET
14 233-870-6830 HARNESS
14 233-870-6830 HARNESS
14 233-870-6830 HARNESS
14 233-870-6830 HARNESS
15 233-870-6840 CABLE
15 233-870-6840 CABLE
15 233-870-6840 CABLE
15 233-870-6840 CABLE
16 233-870-6850 CABLE
16 233-870-6850 CABLE
16 233-870-6850 CABLE
16 233-870-6850 CABLE
17 233-870-6822 HARNESS
17 233-870-6822 HARNESS
17 233-870-6822 HARNESS
17 233-870-6822 HARNESS
18 233-870-6810 HARNESS
18 233-870-6810 HARNESS
18 233-870-6810 HARNESS
18 233-870-6810 HARNESS
19 01571-01016 SEAT (WELDED)
19 01571-01016 SEAT (WELDED)
19 01571-01016 SEAT (WELDED)
19 01571-01016 SEAT (WELDED)
20 233-870-6870 PIPE (WELDED)
20 233-870-6870 PIPE (WELDED)
20 233-870-6870 PIPE (WELDED)
20 233-870-6870 PIPE (WELDED)
21 01571-01016 SEAT (WELDED)
21 01571-01016 SEAT (WELDED)
21 01571-01016 SEAT (WELDED)
21 01571-01016 SEAT (WELDED)
22 08035-01510 CLIP
22 08035-01510 CLIP
22 08035-01510 CLIP
22 08035-01510 CLIP
23 01010-51020 BOLT
23 01010-51020 BOLT
23 01010-51020 BOLT
23 01010-51020 BOLT
24 01602-21030 WASHER
24 01602-21030 WASHER
24 01602-21030 WASHER
24 01602-21030 WASHER
25 08034-00414 BAND
25 08034-00414 BAND
25 08034-00414 BAND
25 08034-00414 BAND
26 233-870-6940 CABLE
26 233-870-6940 CABLE
26 233-870-6940 CABLE
26 233-870-6940 CABLE
27 01010-50812 BOLT
27 01010-50812 BOLT
27 01010-50812 BOLT
27 01010-50812 BOLT
28 01602-20825 WASHER
28 01602-20825 WASHER
28 01602-20825 WASHER
28 01602-20825 WASHER
