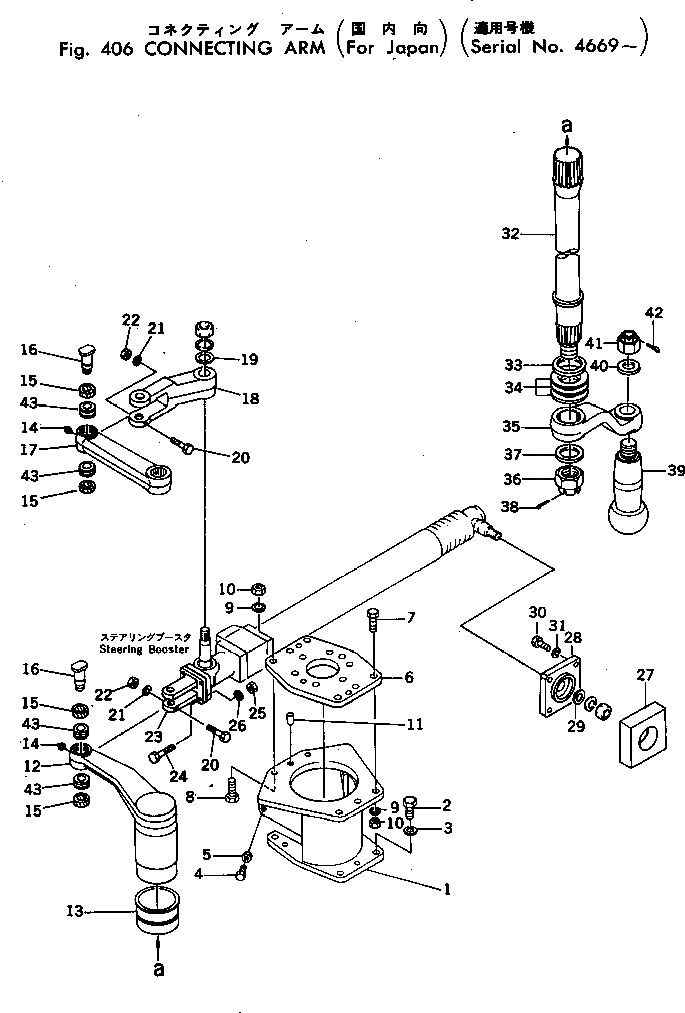

| 1 | 232-41-11111 | BRACKET | |
| 2 | 01010-51640 | BOLT | |
| 3 | 01602-21648 | WASHER | |
| 4 | 01016-51680 | BOLT | |
| 5 | 01580-11613 | NUT | |
| 6 | 232-41-11120 | PLATE | |
| 7 | 01010-51245 | BOLT | |
| 8 | 01010-51235 | BOLT | |
| 9 | 01602-21236 | WASHER | |
| 10 | 01580-11210 | NUT | |
| 11 | 04020-01228 | PIN | |
| 12 | 232-41-26122 | ARM | |
| |12 | 232-41-26190 | COLLAR | |
| 13 | 232-41-26131 | BUSHING | |
| 14 | 07020-00000 | FITTING | |
| 15 | 07145-00025 | SEAL | |
| 16 | 234-41-11132 | PIN | |
| 17 | 232-41-26112 | ARM | |
| |17 | 232-41-26190 | COLLAR | |
| 18 | 234-41-11121 | YOKE | |
| 19 | 234-41-11171 | WASHER | |
| 20 | 01010-50860 | BOLT | |
| 21 | 01602-20825 | WASHER | |
| 22 | 01580-10806 | NUT | |
| 23 | 234-41-11142 | ARM | |
| 24 | 01010-31045 | BOLT | |
| 25 | 01580-11008 | NUT | |
| 26 | 01602-21030 | WASHER | |
| 27 | 232-41-15211 | SEAT | |
| 28 | 234-41-14111 | SUPPORT | |
| 29 | 234-41-11171 | WASHER | |
| 30 | 01010-31230 | BOLT | |
| 31 | 01602-21230 | WASHER | |
| 32 | 232-40-13725 | SHAFT | |
| 33 | 232-40-13730 | WASHER | |
| 34 | 232-40-05080 | SHIM ASS'Y | |
| |34 | 232-40-13760 | SHIM¤ 0.5MM | |
| |34 | 232-40-13750 | SHIM¤ 1.0MM | |
| |34 | 232-40-13740 | SHIM¤ 4.0MM | |
| 35 | 232-40-13773 | ARM | |
| 36 | 01593-12716 | NUT | |
| 37 | 01640-22740 | WASHER | |
| 38 | 04050-15045 | PIN | |
| 39 | 232-40-15510 | STUD | |
| 40 | 01640-22032 | WASHER | |
| 41 | 01593-12013 | NUT | |
| 42 | 04050-14030 | PIN | |
| 43 | 232-41-26190 | COLLAR |
