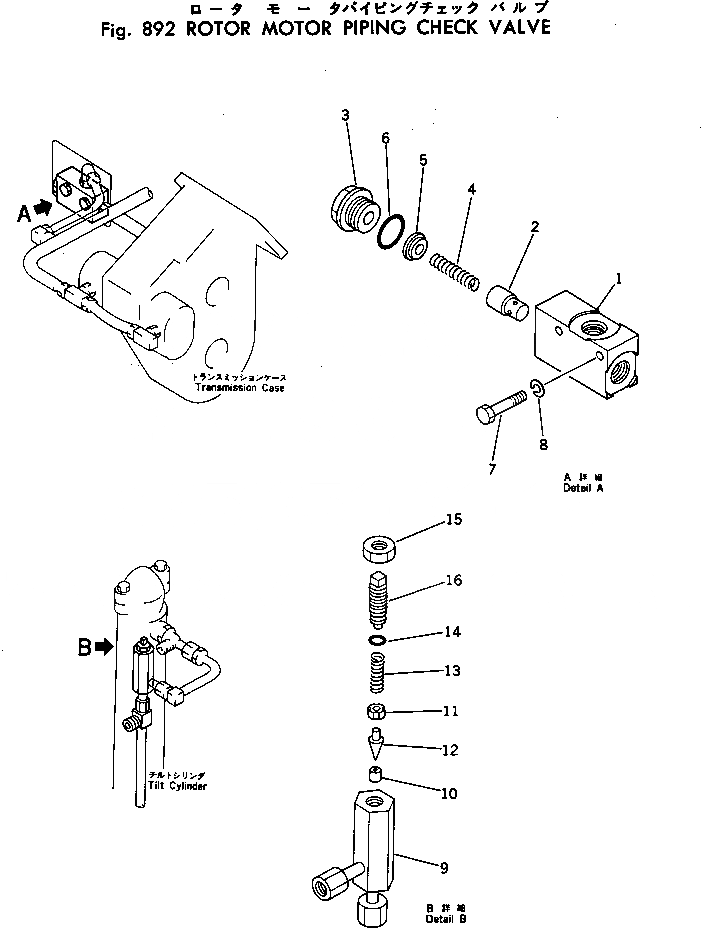

| |1 | 232-976-0070 | VALVE ASS'Y | |
| 1 | BODY | ||
| 2 | VALVE | ||
| 3 | 232-975-2530 | PLUG | |
| 4 | 232-975-2540 | SPRING | |
| 5 | 232-975-2550 | DISTANCE | |
| 6 | 07002-13034 | O-RING | |
| |6 | 07000-03025 | O-RING | |
| 7 | 01010-50850 | BOLT | |
| |7 | 01000-30850 | BOLT | |
| 8 | 01602-00825 | WASHER | |
| |9 | 232-976-0150 | VALVE ASS'Y | |
| |9 | 232-976-0150 | VALVE ASS'Y | |
| 9 | HOUSING | ||
| |9 | HOUSING | ||
| 10 | BUSHING | ||
| |10 | BUSHING | ||
| 11 | 232-975-2630 | COLLAR | |
| |11 | 232-975-2630 | COLLAR | |
| 12 | VALVE | ||
| |12 | VALVE | ||
| 13 | 234-60-16240 | SPRING | |
| |13 | 234-60-16240 | SPRING | |
| 14 | 07000-12011 | O-RING | |
| |14 | 07000-12011 | O-RING | |
| 15 | 01583-11811 | NUT | |
| |15 | 01583-11811 | NUT | |
| 16 | 232-975-2620 | SCREW | |
| |16 | 232-975-2620 | SCREW |
