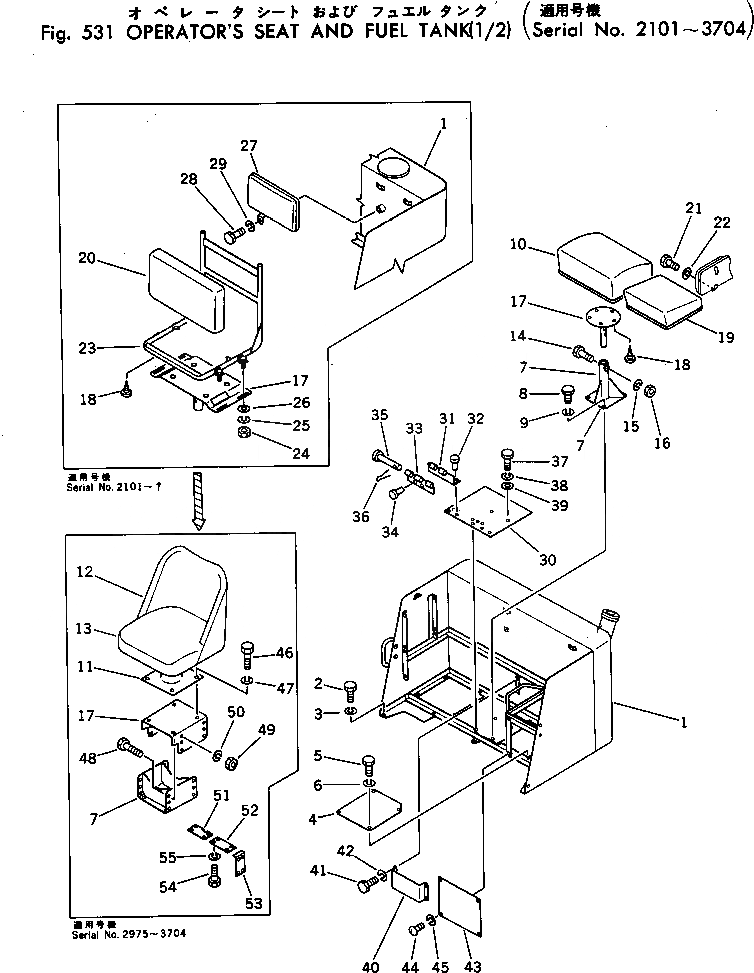

Запчасти сиденье оператора и топливн. бак. (/)(№-7) грейдеры gd37-6h s/n 2101-up Komatsu

1	232-801-1398	FRAME
\|1	232-801-1397	FRAME
\|1	232-801-1396	FRAME
\|1	232-801-1395	FRAME
\|1	232-801-1394	FRAME
2	01010-31225	BOLT
\|2	01000-31225	BOLT
3	01602-01236	WASHER
4	232-54-31722	PLATE
\|4	232-54-31721	PLATE
5	01010-30816	BOLT
\|5	01000-30816	BOLT
6	01640-20816	WASHER
7	232-801-1871	SUPPORT
\|7	232-801-1870	SUPPORT
\|7	232-54-31730	SUPPORT
8	01000-31225	BOLT
9	01602-01236	WASHER
10	09407-00000	SEAT ASS'Y
\|10	232-54-12500	SEAT ASS'Y
\|10	09400-00000	SEAT
11	09407-00020	BRACKET
12	09407-00030	CUSHION
13	09407-00040	CUSHION
14	01000-31895	BOLT
15	01602-01854	WASHER
16	01500-31816	NUT
17	232-801-1861	SUPPORT
\|17	232-801-1860	SUPPORT
\|17	232-54-11323	SUPPORT
18	01380-20626	SCREW
19	232-54-11310	CUSHION
20	130-57-11153	CUSHION
21	01000-31020	BOLT
22	01602-01030	WASHER
23	232-54-11370	FRAME
24	01500-31008	NUT
25	01602-01030	WASHER
26	01643-21032	WASHER
27	232-54-11380	CUSHION
28	01010-31020	BOLT
\|28	01000-31020	BOLT
29	01602-01030	WASHER
30	232-801-1952	PLATE
\|30	232-801-1951	PLATE
\|30	232-801-1950	PLATE
\|30	232-54-31120	PLATE
31	232-54-31130	HINGE
32	04411-00516	RIVET
33	232-54-31140	HINGE
34	04411-00516	RIVET
35	232-854-1250	PIN
36	04050-02012	PIN
37	01010-31225	BOLT
\|37	01000-31225	BOLT
\|37	01000-31225	BOLT
38	01602-01236	WASHER
\|38	01602-01236	WASHER
39	01642-21216	WASHER
\|39	01642-21216	WASHER
40	232-54-11730	COVER
41	01000-31012	BOLT
42	01602-01030	WASHER
43	232-54-11711	PLATE
\|43	232-54-11710	PLATE
44	01010-30816	BOLT
\|44	01210-40816	SCREW
\|44	01210-20816	SCREW
45	01602-00825	WASHER
46	01010-31425	BOLT
\|46	01000-31430	BOLT
47	01602-01442	WASHER
48	01010-31225	BOLT
\|48	01000-31225	BOLT
49	01580-01210	NUT
\|49	01500-31210	NUT
50	01602-01236	WASHER
51	232-54-31910	COVER
52	232-54-31920	COVER
53	232-54-31930	COVER
54	01010-31016	BOLT
55	01602-01030	WASHER
