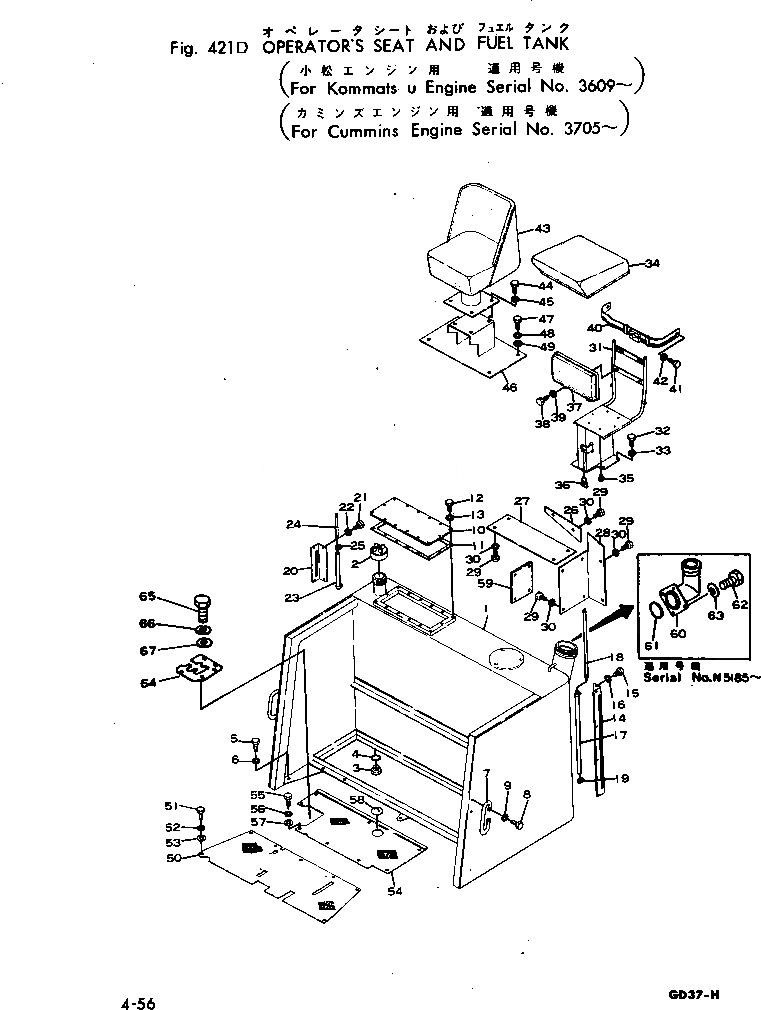

Запчасти сиденье оператора и топливн. бак.(№9-) грейдеры gd37-5h s/n 2101-up Komatsu

1	232-54-31117	FRAME,(SEE FIG.117B)
2	07051-00000	CAP
3	07044-02412	PLUG
4	07002-12434	O-RING
5	01010-51225	BOLT
6	01602-21236	WASHER
7	232-54-11171	HANDLE
8	01010-51230	BOLT
9	01602-21236	WASHER
10	232-54-31251	PLATE
\|10	232-54-31250	PLATE
11	232-54-31261	PACKING
\|11	232-54-31260	PACKING
12	01010-51020	BOLT
\|12	01010-31020	BOLT
13	01602-21030	WASHER
\|13	01602-01030	WASHER
14	232-54-31151	COVER
\|14	232-54-31150	COVER
15	01010-50610	BOLT
16	01602-20619	WASHER
17	232-54-31950	TUBE
\|17	07270-01077	TUBE
18	232-04-11411	GAUGE,FUEL
\|18	232-04-11410	GAUGE,FUEL
19	232-43-13450	CLAMP
20	232-54-31270	COVER
21	01010-50610	BOLT
22	01602-20619	WASHER
23	07270-01024	TUBE
24	232-60-13171	GAUGE,OIL
\|24	232-60-13170	GAUGE,OIL
25	232-43-13450	CLAMP
26	232-54-31911	COVER
27	232-54-31921	COVER
28	232-54-31932	COVER
\|28	232-54-31931	COVER
29	01010-51016	BOLT
30	01602-21030	WASHER
31	232-54-11391	FRAME
\|31	232-54-11390	FRAME
32	01010-51225	BOLT
33	01602-21236	WASHER
34	232-54-11310	CUSHION
35	01380-20626	SCREW
36	232-46-13310	PADLOCK
37	232-54-11380	CUSHION
38	01010-51020	BOLT
39	01602-21030	WASHER
40	236-54-29210	BELT
\|40	281-57-11330	BELT
41	01010-51020	BOLT
42	01602-21030	WASHER
43	236-54-22300	OPERATOR'S SEAT A.
\|43	09407-00000	SEAT ASS'Y
44	01010-51425	BOLT
45	01602-21442	WASHER
46	232-54-31124	PLATE
47	01010-51225	BOLT
48	01602-21236	WASHER
49	01642-21216	WASHER
50	232-54-31280	PLATE
\|50	232-814-1224	PLATE (OP)
51	01010-51220	BOLT
52	01602-21236	WASHER
53	01642-21216	WASHER
54	232-54-11219	PLATE
\|54	232-814-1214	PLATE (OP)
55	01010-51220	BOLT
56	01602-21236	WASHER
57	01642-21216	WASHER
58	232-54-11780	COVER
59	232-54-31940	PLATE
64	232-814-1161	PLATE
65	01010-51025	BOLT
66	01602-21030	WASHER
67	232-814-1350	WASHER
\|67	01640-21016	WASHER
