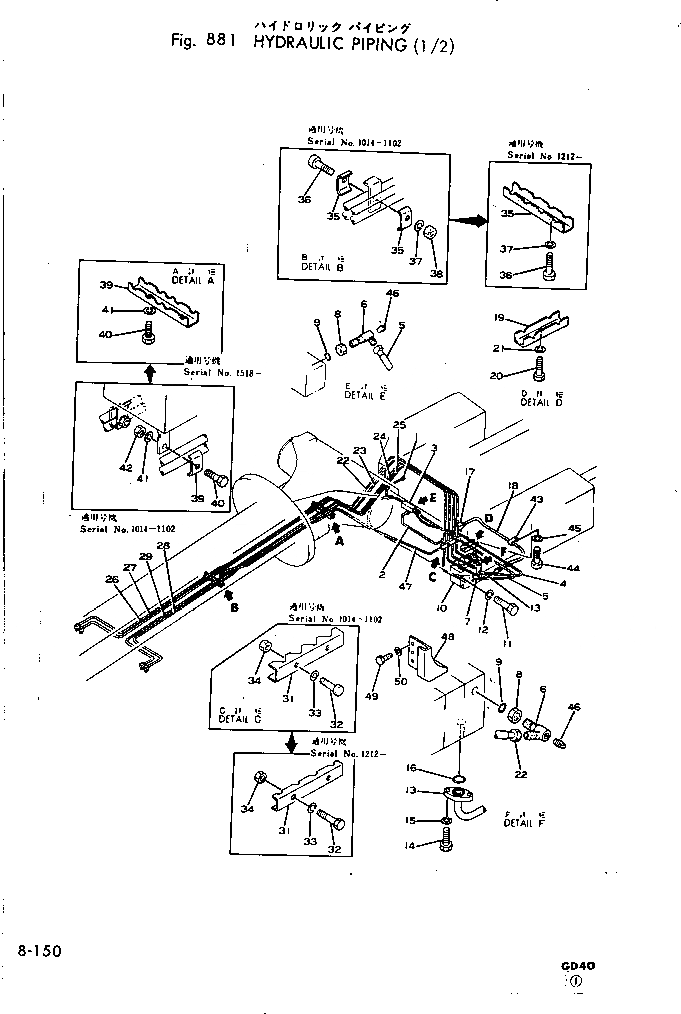

Запчасти гидролиния (/)(№-) грейдеры gd40ht-2 s/n 1002-up Komatsu



1 234-977-2580 TUBE
2 234-977-2571 TUBE
|2 234-977-2570 TUBE
3 234-977-2561 TUBE
|3 234-977-2560 TUBE
|3 234-977-2120 TUBE
4 234-977-2131 TUBE
|4 234-977-2130 TUBE
5 234-977-2142 TUBE
|5 234-977-2141 TUBE
6 07231-10422 ELBOW
|6 07231-10422 ELBOW
|6 07231-10422 ELBOW
|6 07231-10422 ELBOW
7 232-971-4950 ELBOW
|7 232-975-4790 ELBOW
8 07239-12009 NUT
|8 07239-12009 NUT
|8 07239-12009 NUT
|8 07239-12009 NUT
9 07002-12034 O-RING
|9 07002-12034 O-RING
|9 07002-12034 O-RING
|9 07002-12034 O-RING
10 700-72-22000 VALVE ASS'Y
|10 700-12-18000 VALVE ASS'Y
11 01010-31080 BOLT
|11 01010-31085 BOLT
12 01602-01030 WASHER
13 234-977-2161 TUBE
|13 234-977-2160 TUBE
14 01010-31045 BOLT
15 01602-01030 WASHER
16 07000-13028 O-RING
|16 07000-13045 O-RING
17 234-977-2170 ELBOW
18 07109-20410 HOSE
19 234-977-2150 CLIP
20 01010-31045 BOLT
21 01602-01030 WASHER
22 234-977-2221 TUBE
|22 234-977-2220 TUBE
23 234-977-2231 TUBE
|23 234-977-2230 TUBE
24 234-977-2241 TUBE
|24 234-977-2240 TUBE
25 234-977-2251 TUBE
|25 234-977-2250 TUBE
26 234-977-2263 TUBE
|26 234-977-2262 TUBE
|26 234-977-2261 TUBE
|26 234-977-2260 TUBE
27 234-977-2273 TUBE
|27 234-977-2272 TUBE
|27 234-977-2271 TUBE
|27 234-977-2270 TUBE
28 234-977-2283 TUBE
|28 234-977-2282 TUBE
|28 234-977-2281 TUBE
|28 234-977-2280 TUBE
29 234-977-2293 TUBE
|29 234-977-2292 TUBE
|29 234-977-2291 TUBE
|29 234-977-2290 TUBE
31 234-977-2421 CLIP
|31 234-977-2420 CLIP
32 01010-31045 BOLT
|32 01010-31055 BOLT
33 01602-01030 WASHER
34 01580-01008 NUT
35 234-977-2490 CLIP
|35 234-977-2490 CLIP
|35 232-60-14930 CLAMP
36 01010-31040 BOLT
|36 01010-31040 BOLT
|36 01010-31075 BOLT
37 01602-01030 WASHER
|37 01602-01030 WASHER
|37 01602-01030 WASHER
38 01580-01008 NUT
39 234-977-2510 CLIP
|39 232-60-14930 CLAMP
40 01010-30820 BOLT
|40 01010-31045 BOLT
41 01602-00825 WASHER
|41 01602-01030 WASHER
42 01580-01008 NUT
43 08036-23014 CLIP
|43 232-807-1551 CLIP
44 01010-31016 BOLT
45 01602-01030 WASHER
46 07042-00108 PLUG
|46 07042-00108 PLUG
|46 07042-00108 PLUG
|46 07042-00108 PLUG
|46 07042-00108 PLUG
47 234-977-2740 TUBE
48 234-977-8241 PROTECTOR
|48 234-977-8240 PROTECTOR
49 01010-31245 BOLT
50 01602-01236 WASHER
