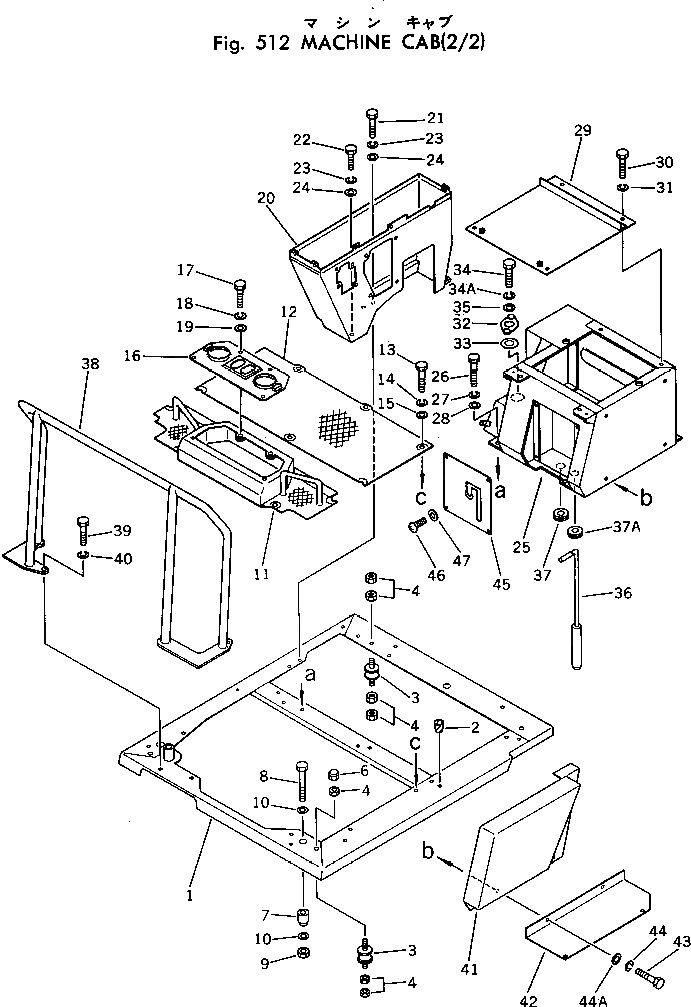

Запчасти кабина (/) экскаваторы pc30-1 s/n 1001-up Komatsu



1 20S-54-12110 FRAME
2 07049-01012 PLUG,(FOR CANOPY)
3 20R-01-12111 CUSHION
4 01580-12110 NUT
6 20T-54-26130 NUT
7 20T-54-11510 BOSS
8 01010-31680 BOLT
9 01580-11613 NUT
10 01643-21645 WASHER
11 20S-54-12130 FLOOR
12 20S-54-12140 FLOOR
13 01010-31025 BOLT
14 01602-01030 WASHER,SPRING
15 01643-31032 WASHER
16 20S-54-12150 COVER
17 01010-31025 BOLT
18 01602-01030 WASHER,SPRING
19 01643-31032 WASHER
20 20S-54-12160 BOX,PANEL
21 01010-31035 BOLT
22 01010-31025 BOLT
23 01602-01030 WASHER,SPRING
24 01643-31032 WASHER
25 20S-54-12171 BOX
26 01010-31025 BOLT
27 01602-01030 WASHER,SPRING
28 01643-31032 WASHER
29 20S-54-12180 COVER
30 01010-31225 BOLT
31 01602-01236 WASHER,SPRING
32 20S-54-12190 PLATE
33 20S-54-12210 SHEET
34 01010-30620 BOLT
34A 01602-20619 WASHER,SPRING
35 01643-30623 WASHER
36 20S-54-12220 PIN
37 09415-01610 CAP
37A 08037-01610 GROMMET
38 20S-54-12410 HANDRAIL,(FOR CANOPY)
38 20S-54-12270 HANDRAIL,(FOR CANOPY)
39 01010-31025 BOLT,(FOR CANOPY)
40 01602-01030 WASHER,SPRING (FOR CANOPY)
41 20S-54-12280 COVER
42 20S-54-12290 COVER
43 01010-31025 BOLT
44 01602-01030 WASHER,SPRING
44A 01643-31032 WASHER
45 20S-54-12320 PLATE
46 01220-40616 SCREW
47 01602-00619 WASHER,SPRING
