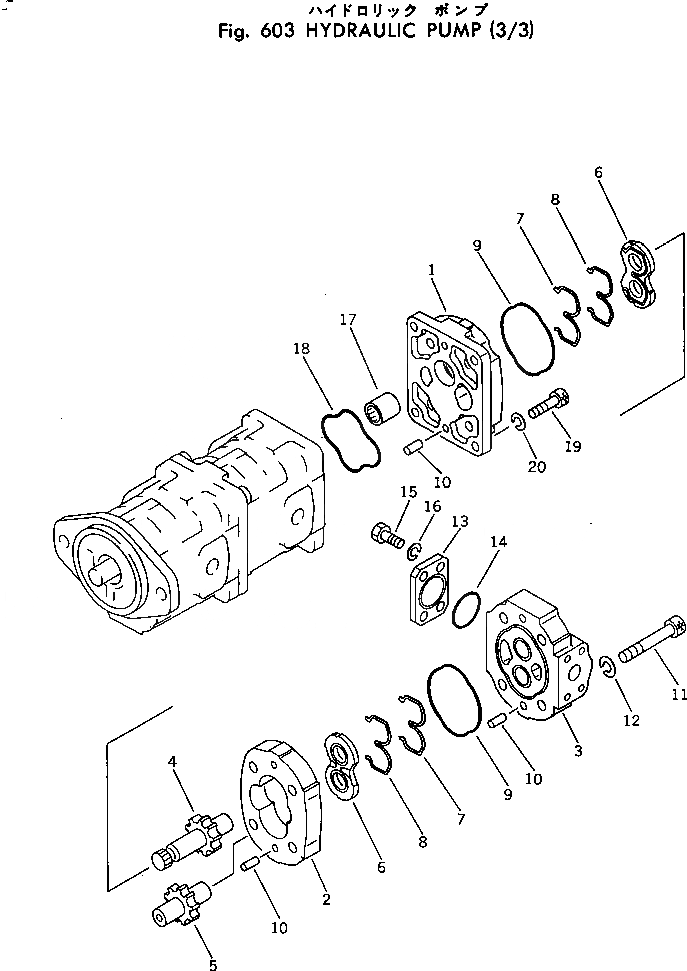

Запчасти гидр. насос. (/) экскаваторы pc30-3 s/n 2601-up Komatsu



|$0 705-56-14000 PUMP ASS'Y
|$2 705-12-21530 PUMP ASS'Y,(SAR10)
1 705-17-01520 BRACKET ASS'Y
2 705-17-21010 CASE,GEAR
3 705-17-01120 COVER
4 705-17-21450 GEAR,DRIVE
5 705-17-21510 GEAR,DRIVEN
6 705-17-01610 PLATE,SIDE
7 705-17-01440 RING,BACK-UP
8 705-17-01470 SEAL
9 705-17-01381 O-RING
10 04020-00820 PIN,DOWEL
11 705-17-02720 BOLT
12 01602-21236 WASHER,SPRING
13 705-17-01880 PLATE
14 07000-03032 O-RING
15 01010-51025 BOLT
16 01602-21030 WASHER,SPRING
17 705-17-01330 COUPLING ASS'Y
18 705-17-01480 O-RING
19 705-17-02374 BOLT
20 01602-21030 WASHER,SPRING
