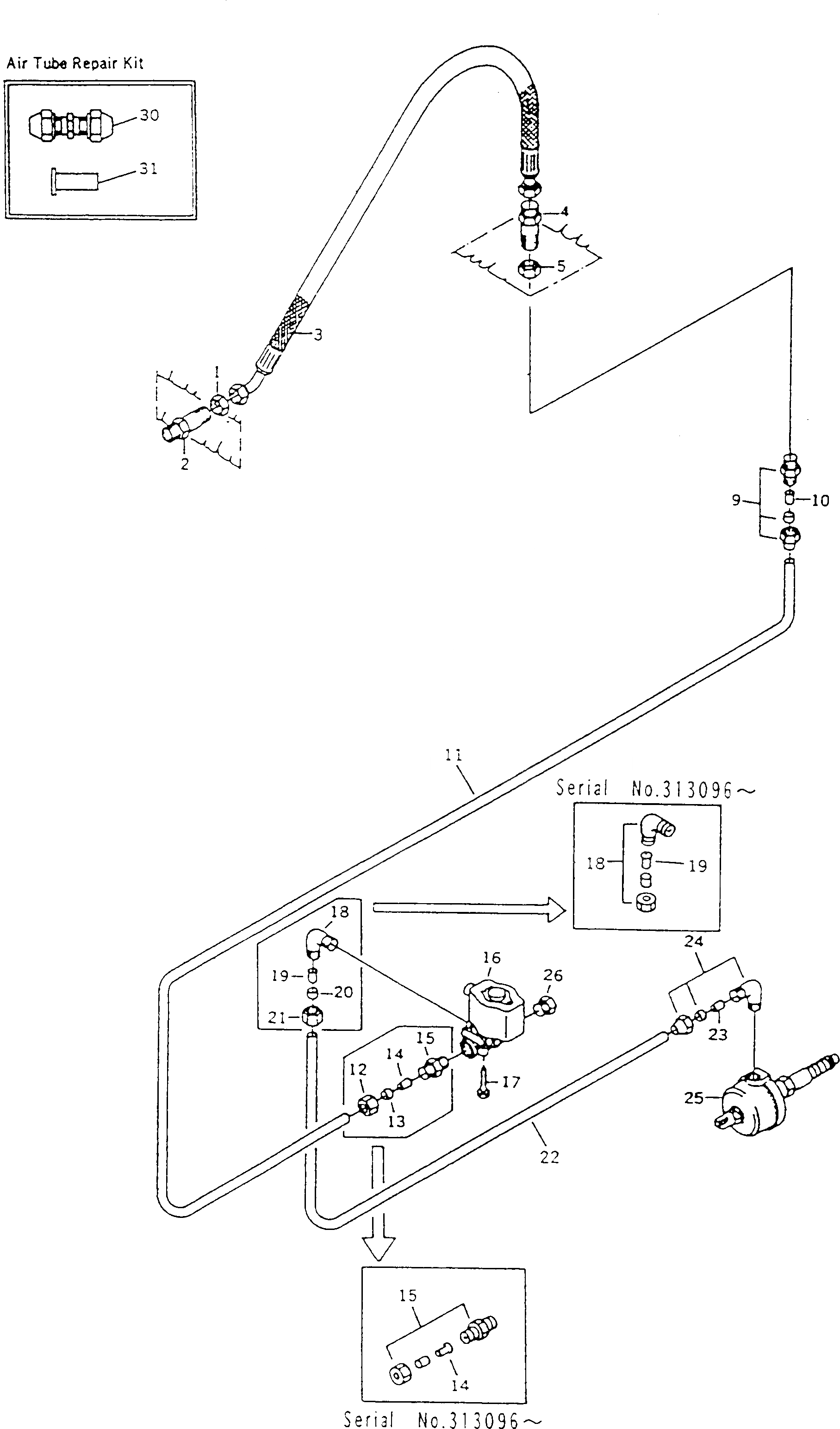

Запчасти задний дифференциал управл-е возд. система(№-) самосвалы ha270-3 s/n 313001-up Komatsu
|
|
1 |
BW065574 |
NUT
|
|
|
2 |
BW040977 |
CONNECTOR
|
|
|
3 |
BW035240 |
HOSE
|
|
|
3 |
BW034987 |
HOSE
|
|
|
4 |
BW040977 |
CONNECTOR
|
|
|
5 |
BW065574 |
NUT
|
|
|
9 |
BW054141 |
CONNECTOR
|
|
|
9 |
BW054156 |
RING,SLEEVE
|
|
|
10 |
BW054127 |
SLEEVE
|
|
|
11 |
BW047618 |
TUBE,(L=3760)
|
|
|
12 |
BW054363 |
NUT
|
|
|
13 |
BW052918 |
RING,SLEEVE
|
|
|
14 |
BW054127 |
SLEEVE
|
|
|
15 |
BW054496 |
CONNECTOR
|
|
|
15 |
BW054371 |
CONNECTOR
|
|
|
16 |
BW054415 |
VALVE,MAGNET
|
|
|
17 |
BW061458 |
BOLT,(M6X18)
|
|
|
18 |
BW054497 |
ELBOW
|
|
|
18 |
BW054364 |
ELBOW
|
|
|
19 |
BW054127 |
SLEEVE
|
|
|
20 |
BW052918 |
RING,SLEEVE
|
|
|
21 |
BW054363 |
NUT
|
|
|
22 |
BW045438 |
TUBE,(L=500)
|
|
|
23 |
BW054127 |
SLEEVE
|
|
|
24 |
BW054129 |
ELBOW
|
|
|
24 |
BW054156 |
RING,SLEEVE
|
|
|
25 |
BW053537 |
CYLINDER ASS'Y
|
|
|
26 |
BW054403 |
PLUG
|
|
|
30 |
BW054151 |
CONNECTOR,1/2
|
|
|
30 |
BW054150 |
CONNECTOR,3/8
|
|
|
30 |
BW054323 |
CONNECTOR,1/4
|
|
|
30 |
BW054157 |
RING,1/2
|
|
|
30 |
BW054156 |
RING,3/8
|
|
|
30 |
BW054189 |
RING,1/4
|
|
|
31 |
BW054126 |
SLEEVE,1/2
|
|
|
31 |
BW054127 |
SLEEVE,3/8
|
|
|
31 |
BW054186 |
SLEEVE,1/4
|
