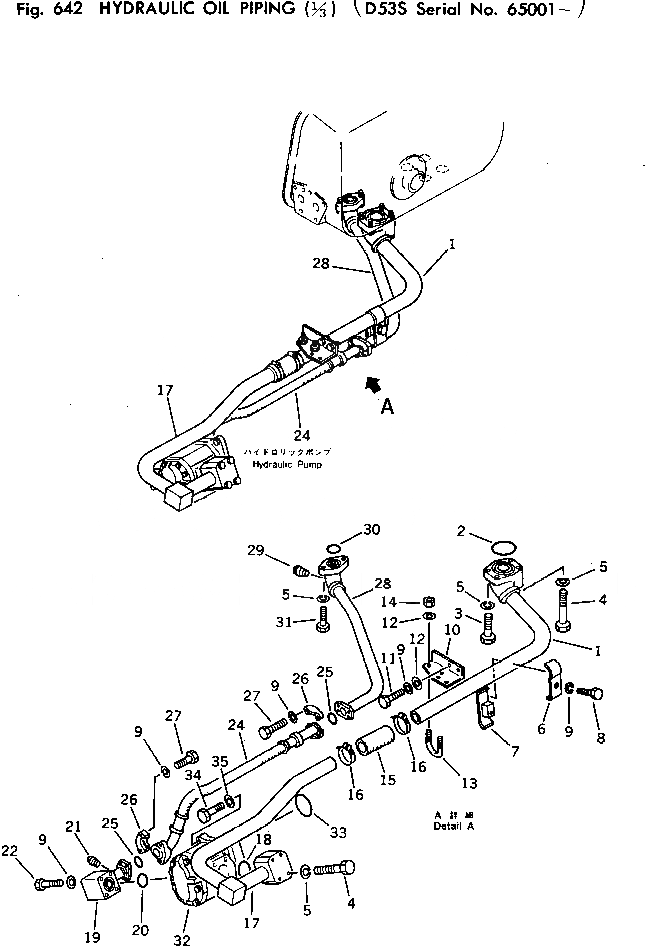

| 1 | 131-62-61130 | TUBE | |
| 2 | 07000-22070 | O-RING | |
| 3 | 01010-31250 | BOLT | |
| 4 | 01011-31210 | BOLT | |
| 5 | 01602-01236 | WASHER | |
| 6 | 131-62-61230 | PLATE | |
| 7 | 131-62-61220 | BRACKET | |
| 8 | 01010-31020 | BOLT | |
| 9 | 01602-01030 | WASHER | |
| 10 | 131-62-61190 | BRACKET | |
| 11 | 01010-31030 | BOLT | |
| 12 | 01643-31032 | WASHER | |
| 13 | 07283-14949 | CLIP | |
| 14 | 01599-01011 | NUT | |
| 15 | 07260-24713 | HOSE | |
| 16 | 07281-00549 | CLAMP | |
| 17 | 13E-62-21110 | TUBE | |
| 18 | 07000-22060 | O-RING | |
| 19 | 13E-62-21131 | TUBE | |
| 20 | 07000-03042 | O-RING | |
| 21 | 07042-20108 | PLUG | |
| 22 | 01010-31080 | BOLT | |
| 24 | 07114-01007 | HOSE | |
| 25 | 07000-23032 | O-RING | |
| 26 | 07371-31049 | FLANGE | |
| 27 | 07372-21030 | BOLT | |
| 28 | 131-62-61210 | TUBE | |
| 29 | 07042-20108 | PLUG | |
| 30 | 07000-23035 | O-RING | |
| 31 | 01010-31240 | BOLT | |
| 32 | 704-11-38100 | PUMP ASS'Y | |
| 33 | 07000-02065 | O-RING | |
| 34 | 01010-31245 | BOLT | |
| 35 | 01602-01236 | WASHER |
