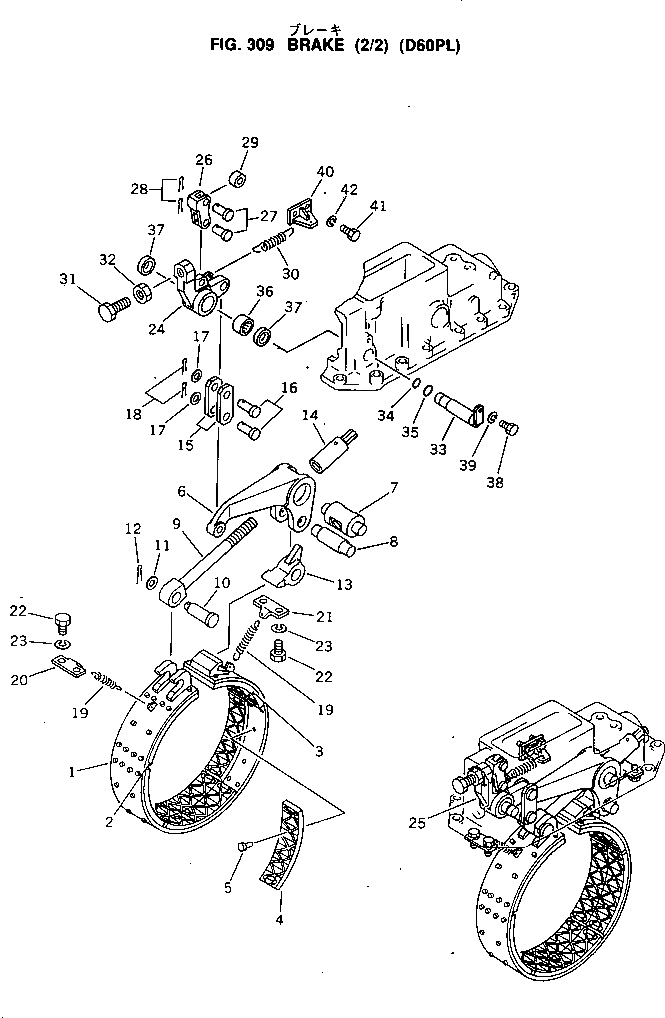

Запчасти тормоз. (/) бульдозеры гусеничные d60pl-8 s/n 45001-up Komatsu



|$0 144-33-52111 BRAKE BAND ASS'Y
|$1 144-33-05071 SERVICE KIT (K4)
|$2 144-33-52110 BRAKE BAND ASS'Y
1 144-33-51551 BAND,BRAKE
1 144-33-51710 BAND,BRAKE (K4)
1 144-33-51550 BAND,BRAKE
2 144-33-51610 LINING,BRAKE (K4,5)
3 144-33-51610 LINING,BRAKE (K5)
3 144-33-51620 LINING,BRAKE (K5)
4 144-33-51630 LINING,BRAKE (K4,5)
5 04412-00512 RIVET (K4,5)
5 04412-00512 RIVET (K5)
6 144-33-51180 LEVER
6 144-33-21180 LEVER
7 144-33-11310 PIN
8 144-33-11280 PIN
9 144-33-51210 ROD
10 144-33-51330 PIN
11 01640-21626 WASHER
12 04050-24028 PIN,COTTER (K3)
13 144-33-51190 END
13 144-33-21190 END
14 144-33-21220 NUT
15 144-33-21230 PLATE
16 04205-01848 PIN
17 01640-21826 WASHER
18 04050-24028 PIN,COTTER (K3)
19 144-33-11260 SPRING
20 144-33-51230 HANGER (K4)
20 144-33-11240 HANGER
21 144-33-51220 PLATE (K4)
21 144-33-21350 PLATE
22 01010-51425 BOLT
23 01602-21442 WASHER,SPRING
24 144-33-21250 LEVER,R.H.
25 144-33-21240 LEVER,L.H.
26 144-33-21260 LEVER
27 04205-01638 PIN
28 04050-24028 PIN,COTTER (K3)
29 170-33-13330 ROLLER
30 135-43-21480 SPRING
31 144-33-21290 BOLT
32 01583-12012 NUT
33 144-33-21280 SHAFT
34 07000-03022 O-RING (K3)
35 07000-03025 O-RING (K3)
36 144-33-21370 BEARING
37 144-33-21380 COLLAR
38 01010-51025 BOLT
39 01602-21030 WASHER,SPRING
40 130-33-62250 BRACKET
41 01010-51025 BOLT
42 01602-21030 WASHER,SPRING
