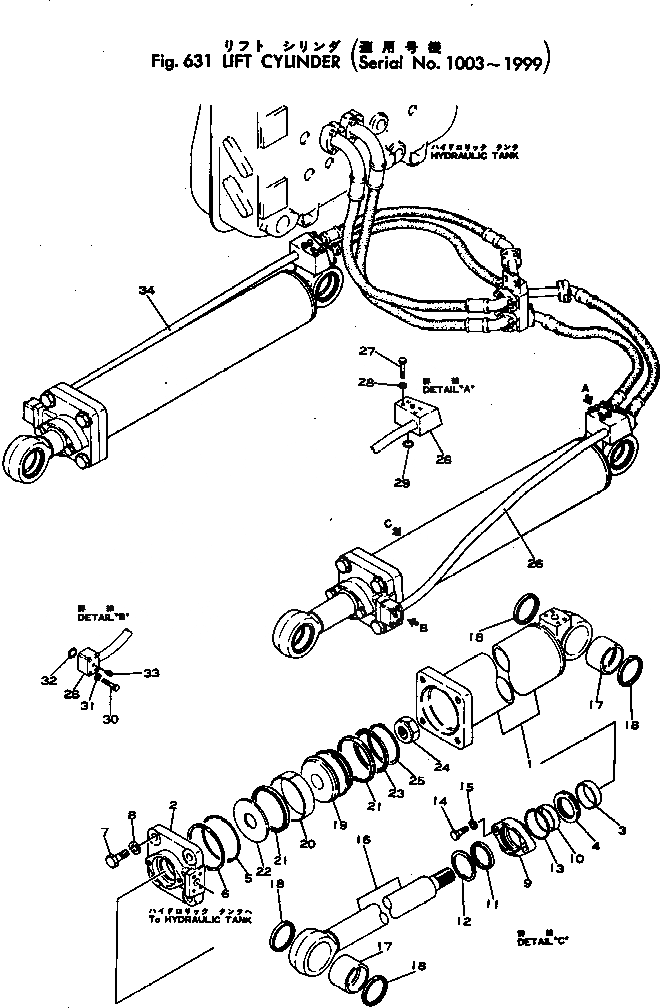

Запчасти гидроцилиндр подъема погрузчики гусеничные d95s-1 s/n 1003-up Komatsu



|$0 155-63-22103 LIFT CYLINDER ASS'Y,L.H.
|$1 155-63-22101 LIFT CYLINDER ASS'Y,L.H.
|$2 155-63-22203 LIFT CYLINDER ASS'Y,R.H.
|$3 155-63-22201 LIFT CYLINDER ASS'Y,R.H.
1 155-63-22142 CYLINDER,L.H.
1 155-63-22242 CYLINDER,R.H.
2 155-63-22131 HEAD,CYLINDER
2 155-63-22130 HEAD,CYLINDER
3 07177-09035 BUSHING
4 154-63-52173 U-PACKING
4 154-63-52171 U-PACKING
5 07000-15170 O-RING
6 07146-05172 RING,BACK-UP
7 01010-82780 BOLT
7 01010-62780 BOLT
8 01602-22783 WASHER,SPRING
8 01602-02783 WASHER,SPRING
9 07178-09050 GLAND
10 07177-09020 BUSHING
11 07016-00908 SEAL,DUST
12 07179-00113 RING,SNAP
13 07000-03110 O-RING
13 07000-13110 O-RING
14 01010-51855 BOLT
14 01010-31860 BOLT
15 01602-21854 WASHER,SPRING
15 01602-01854 WASHER,SPRING
16 155-63-22122 ROD,PISTON
16 155-63-22121 ROD,PISTON
17 155-63-22180 BUSHING
18 07145-00095 SEAL,DUST
19 175-63-42171 PISTON
19 155-63-22280 PISTON
20 07155-01845 RING,WEAR
21 155-63-22191 U-PACKING
21 155-63-22190 U-PACKING
22 155-63-22270 RETAINER
23 155-63-22370 RETAINER
24 07165-15860 NUT,NYLON
24 175-63-42381 NUT,NYLON
24 07165-25860 NUT,NYLON
25 04069-01552 RING,SNAP
26 155-63-22380 TUBE,L.H.
26 155-61-11223 TUBE,L.H.
26 155-63-22380 TUBE,L.H.
26 155-61-11223 TUBE,L.H.
26 155-63-22380 TUBE,L.H.
26 155-61-11223 TUBE,L.H.
27 01010-31095 BOLT
28 01602-01030 WASHER,SPRING
29 07000-13038 O-RING
30 01010-51065 BOLT
30 01010-31065 BOLT
31 01602-21030 WASHER,SPRING
31 01602-01030 WASHER,SPRING
32 07000-13038 O-RING
33 07042-00108 PLUG
34 155-63-22390 TUBE,R.H.
34 155-61-11233 TUBE,R.H.
34 155-63-22390 TUBE,R.H.
34 155-61-11233 TUBE,R.H.
34 155-63-22390 TUBE,R.H.
34 155-61-11233 TUBE,R.H.
