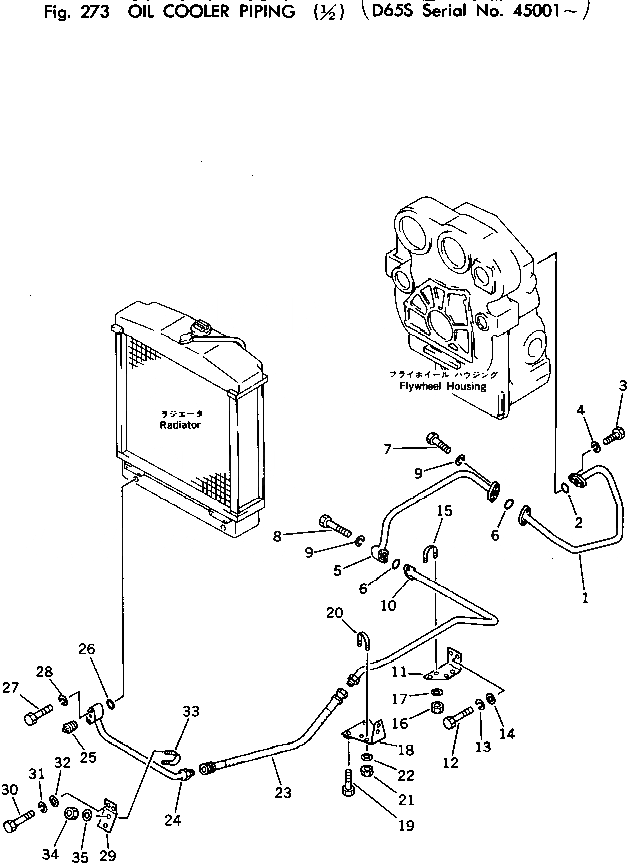

| 1 | 141-49-32181 | TUBE | |
| 2 | 07000-03025 | O-RING | |
| 3 | 01010-51030 | BOLT | |
| 4 | 01602-21030 | WASHER | |
| 5 | 141-49-52210 | TUBE | |
| 6 | 07000-03025 | O-RING | |
| 7 | 01010-51030 | BOLT | |
| 8 | 01010-51055 | BOLT | |
| 9 | 01602-21030 | WASHER | |
| 10 | 141-49-54220 | TUBE | |
| 11 | 141-49-54240 | PLATE | |
| 12 | 01010-51025 | BOLT | |
| 13 | 01602-21030 | WASHER | |
| 14 | 01643-31032 | WASHER | |
| 15 | 07283-22236 | CLIP | |
| 16 | 01599-01011 | NUT | |
| 17 | 01643-31032 | WASHER | |
| 18 | 141-49-54250 | BRACKET | |
| 19 | 01010-51035 | BOLT | |
| 20 | 07283-22236 | CLIP | |
| 21 | 01599-01011 | NUT | |
| 22 | 01643-31032 | WASHER | |
| 23 | 07102-20507 | HOSE | |
| 24 | 141-49-54230 | TUBE | |
| 25 | 07042-20108 | PLUG | |
| 26 | 07000-03025 | O-RING | |
| 27 | 01010-51055 | BOLT | |
| 28 | 01602-21030 | WASHER | |
| 29 | 141-49-54260 | PLATE | |
| 30 | 01010-51025 | BOLT | |
| 31 | 01602-21030 | WASHER | |
| 32 | 01643-31032 | WASHER | |
| 33 | 07283-22236 | CLIP | |
| 34 | 01599-01011 | NUT | |
| 35 | 01643-31032 | WASHER |
