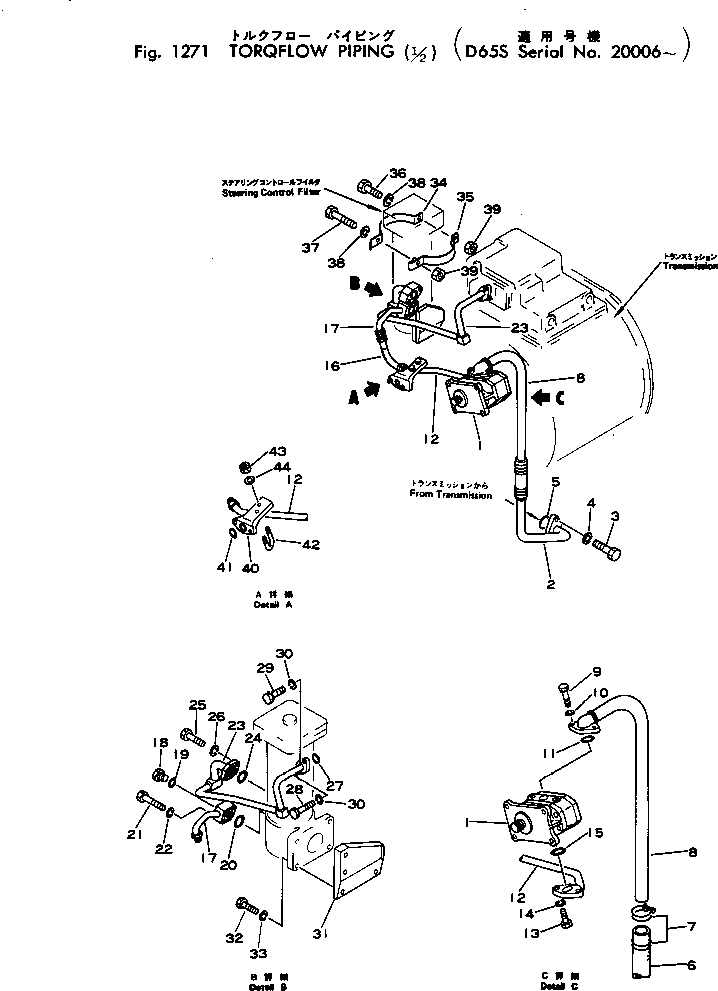

| 1 | 07432-71203 | PUMP ASS'Y | |
| |1 | 07432-71201 | PUMP ASS'Y | |
| |1 | 07432-71200 | PUMP ASS'Y | |
| 2 | 141-49-32112 | TUBE | |
| |2 | 141-49-32111 | TUBE | |
| 3 | 01010-31030 | BOLT | |
| 4 | 01602-01030 | WASHER | |
| 5 | 07000-03040 | O-RING | |
| 6 | 07260-03216 | HOSE | |
| 7 | 07280-05026 | CLAMP | |
| 8 | 141-49-32121 | TUBE | |
| 9 | 01010-31035 | BOLT | |
| 10 | 01602-01030 | WASHER | |
| 11 | 07000-03032 | O-RING | |
| 12 | 141-49-32131 | TUBE | |
| 13 | 01010-31035 | BOLT | |
| 14 | 01602-01030 | WASHER | |
| 15 | 07000-03020 | O-RING | |
| 16 | 07102-20504 | HOSE | |
| 17 | 141-49-32142 | TUBE | |
| |17 | 141-49-32141 | TUBE | |
| 18 | 07040-11007 | PLUG | |
| 19 | 07000-02008 | O-RING | |
| 20 | 07000-03025 | O-RING | |
| 21 | 01010-31050 | BOLT | |
| 22 | 01602-01030 | WASHER | |
| 23 | 141-49-32153 | TUBE | |
| |23 | 141-49-32152 | TUBE | |
| |23 | 141-49-32151 | TUBE | |
| 24 | 07000-03025 | O-RING | |
| 25 | 01010-31050 | BOLT | |
| |25 | 01010-31030 | BOLT | |
| 26 | 01602-01030 | WASHER | |
| 27 | 07000-03028 | O-RING | |
| 28 | 01010-31035 | BOLT | |
| 29 | 01010-31030 | BOLT | |
| 30 | 01602-01030 | WASHER | |
| 31 | 141-49-32391 | PLATE | |
| |31 | 141-49-32390 | PLATE | |
| 32 | 01010-31225 | BOLT | |
| |32 | 01010-31245 | BOLT | |
| 33 | 01602-01236 | WASHER | |
| 34 | 144-49-12560 | CLAMP | |
| 35 | 144-49-12570 | CLAMP | |
| 36 | 01010-31025 | BOLT | |
| 37 | 01010-31045 | BOLT | |
| 38 | 01602-01030 | WASHER | |
| 39 | 01580-01008 | NUT | |
| 40 | 144-49-12650 | BRACKET | |
| 41 | 07000-03022 | O-RING | |
| 42 | 07283-02244 | CLIP | |
| 43 | 01599-01011 | NUT | |
| 44 | 01643-01032 | WASHER |
