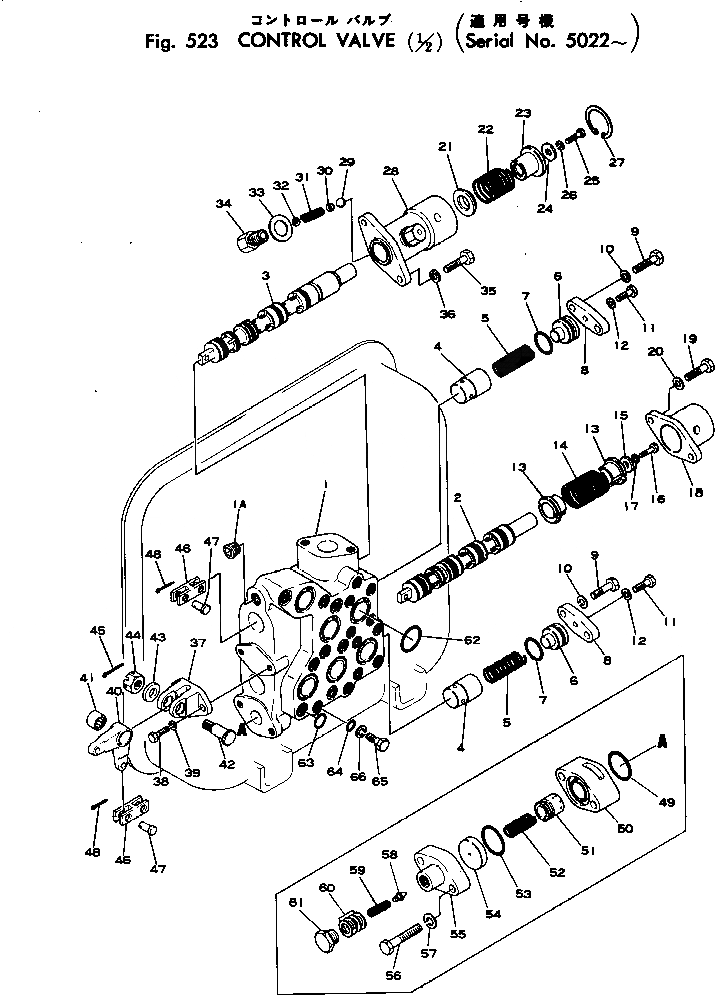

Запчасти управляющ. клапан (/)(№-) погрузчики гусеничные d75s-2 s/n 1004-up Komatsu

\|$0	145-60-00016	TANK ASS'Y
\|$1	145-60-00058	VALVE ASS'Y
\|$2	145-60-00057	VALVE ASS'Y
\|$3	145-60-00044	VALVE SUB ASS'Y
1		BODY
1A	07043-00415	PLUG
2		SPOOL
3		SPOOL
4	170-78-14120	VALVE,CHECK
5	170-78-14130	SPRING
6	145-60-12120	SEAT
7	07000-03035	O-RING
8	170-78-14150	PLATE
9	01010-31235	BOLT
10	01602-01236	WASHER
11	01010-30825	BOLT
12	01602-00825	WASHER
13	170-78-14181	SPACER
14	145-60-32190	SPRING
15	170-78-14210	WASHER
16	01010-31222	BOLT
17	01602-01236	WASHER
18	145-60-12160	RETAINER
19	01010-31235	BOLT
20	01602-01236	WASHER
21	145-60-12330	SPACER
22	145-60-32170	SPRING
23	145-60-12350	SPACER
24	170-78-14210	WASHER
25	01010-31222	BOLT
26	01602-01236	WASHER
27	04065-06020	RING
28	145-60-12361	RETAINER
29	04260-01270	BALL
30	145-60-12371	SPACER
31	131-60-42160	SPRING
32	145-60-12390	SHIM, 0.5MM
33	145-60-12420	LOCK
34	145-60-12412	RETAINER
35	01010-31235	BOLT
36	01602-01236	WASHER
37	145-60-12180	BRACKET
38	01010-31230	BOLT
39	01602-01236	WASHER
40	170-78-14250	LEVER
41	145-60-12190	BEARING
42	170-78-14230	SHAFT
43	01640-01826	WASHER
44	01593-01813	NUT
45	04050-04030	PIN
46	04213-01040	YOKE
47	04205-01028	PIN
48	04050-03015	PIN
\|$53	07000-03048	O-RING
\|$54	145-60-00201	VALVE ASS'Y,RELIEF
\|$55	145-60-00200	VALVE ASS'Y,RELIEF
\|$56	135-60-00080	HOUSING ASS'Y
50		HOUSING
51		VALVE
52	170-64-12730	SPRING
53	07000-03048	O-RING
54	145-60-32450	PISTON
54	135-60-12142	SEAT
55	135-60-12132	BODY
56	01011-31405	BOLT
57	01602-01442	WASHER,SPRING
58	145-60-32440	VALVE
58	135-60-12152	VALVE
59	135-60-12161	SPRING
60	170-64-00100	SHIM ASS'Y
60		SHIM, 0.1MM
60		SHIM, 0.2MM
60		SHIM, 0.5MM
60		SHIM, 1.0MM
61	135-60-12181	PLUG
62	07000-23045	O-RING
63	07000-02018	O-RING
64	07000-02015	O-RING
65	01010-31230	BOLT
66	01602-01236	WASHER
