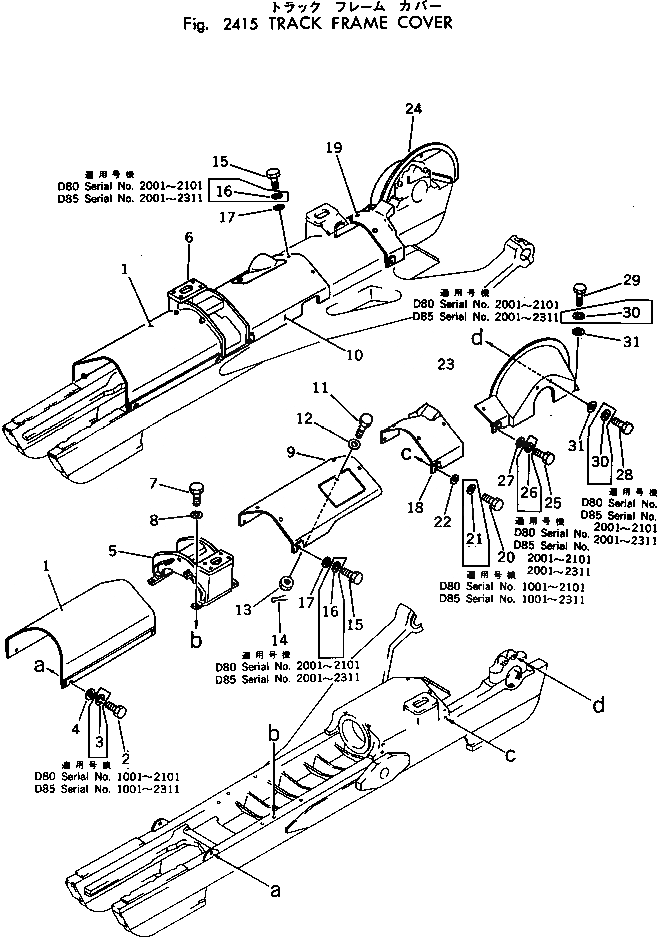

| 1 | 154-30-13420 | COVER | |
| 2 | 01010-31225 | BOLT | |
| 3 | 01602-01236 | WASHER | |
| 4 | 01643-31232 | WASHER | |
| 5 | 154-30-11274 | SUPPORT | |
| 6 | 154-30-11284 | SUPPORT | |
| 7 | 01011-32005 | BOLT | |
| 8 | 01643-32060 | WASHER | |
| 9 | 154-30-13430 | COVER | |
| 10 | 154-30-13451 | COVER | |
| 11 | 154-30-27180 | BOLT | |
| 12 | 01641-01223 | WASHER | |
| 13 | 01590-01215 | NUT | |
| 14 | 04050-03025 | PIN | |
| 15 | 01010-31225 | BOLT | |
| 16 | 01602-01236 | WASHER | |
| 17 | 01643-31232 | WASHER | |
| 18 | 154-30-11941 | COVER | |
| 19 | 154-30-11951 | COVER | |
| 20 | 01010-31230 | BOLT | |
| 21 | 01602-01236 | WASHER | |
| 22 | 01643-31232 | WASHER | |
| 23 | 154-30-11383 | COVER | |
| 24 | 154-30-11393 | COVER | |
| 25 | 01010-31235 | BOLT | |
| 26 | 01602-01236 | WASHER | |
| 27 | 01643-31232 | WASHER | |
| 28 | 01010-31635 | BOLT | |
| 29 | 01010-31640 | BOLT | |
| 30 | 01602-01648 | WASHER | |
| 31 | 01643-31645 | WASHER |
