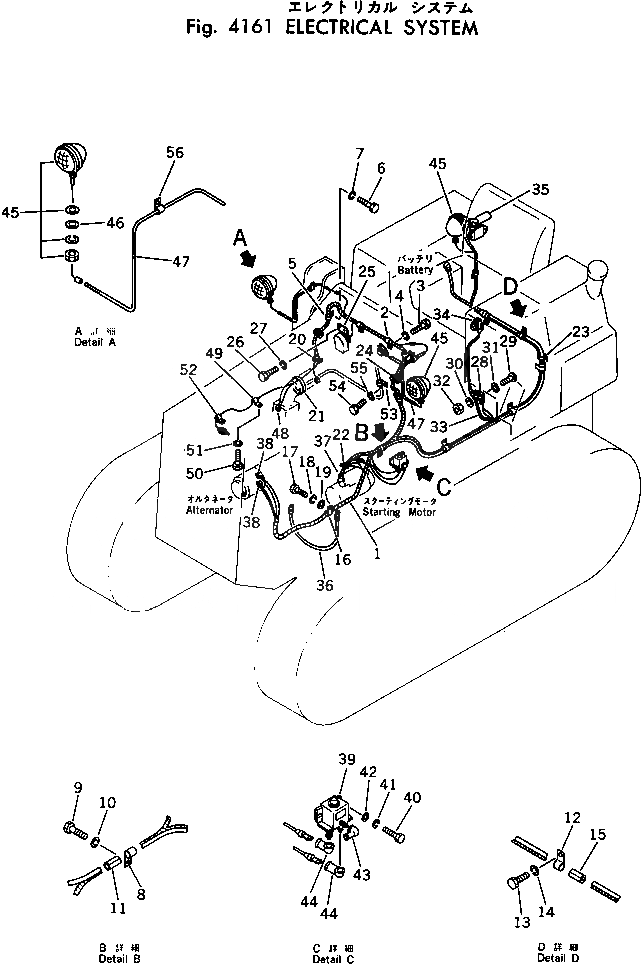

Запчасти электрика погрузчики гусеничные d31s-17 s/n 32001-up Komatsu
|
|
1 |
113-06-33110 |
WIRE ASS'Y
|
|
|
2 |
08036-01414 |
CLIP
|
|
|
3 |
01010-31025 |
BOLT
|
|
|
4 |
01602-01030 |
WASHER,SPRING
|
|
|
5 |
08036-02514 |
CLIP
|
|
|
6 |
01010-31025 |
BOLT
|
|
|
7 |
01602-01030 |
WASHER,SPRING
|
|
|
8 |
08036-02514 |
CLIP
|
|
|
9 |
01010-31025 |
BOLT
|
|
|
10 |
01602-01030 |
WASHER,SPRING
|
|
|
11 |
113-06-23220 |
COVER
|
|
|
12 |
140-06-18440 |
CLIP
|
|
|
13 |
01010-31025 |
BOLT
|
|
|
14 |
01602-01030 |
WASHER,SPRING
|
|
|
15 |
113-06-23220 |
COVER
|
|
|
16 |
08036-10814 |
CLIP
|
|
|
17 |
01010-31025 |
BOLT
|
|
|
18 |
01602-01030 |
WASHER,SPRING
|
|
|
19 |
01643-31032 |
WASHER
|
|
|
20 |
08034-00310 |
BAND
|
|
|
21 |
08034-00536 |
BAND
|
|
|
22 |
08034-00310 |
BAND
|
|
|
23 |
08034-00310 |
BAND
|
|
|
24 |
08037-03620 |
GROMMET
|
|
|
25 |
08160-22400 |
HORN
|
|
|
26 |
01010-30820 |
BOLT
|
|
|
27 |
01602-00825 |
WASHER,SPRING
|
|
|
28 |
113-06-23250 |
SWITCH,LIMIT
|
|
|
29 |
01220-40430 |
SCREW
|
|
|
30 |
01601-00410 |
WASHER,SPRING
|
|
|
31 |
134-06-22130 |
WASHER
|
|
|
32 |
01580-10403 |
NUT
|
|
|
33 |
113-06-23131 |
WIRE
|
|
|
34 |
08064-10000 |
SWITCH,HORN
|
|
|
35 |
08038-00518 |
CAP
|
|
|
36 |
113-06-21170 |
WIRE ASS'Y
|
|
|
37 |
08038-06031 |
CAP
|
|
|
38 |
08038-00518 |
CAP
|
|
|
39 |
600-815-2360 |
SWITCH,RELAY
|
|
|
40 |
01010-30616 |
BOLT
|
|
|
41 |
01602-00619 |
WASHER,SPRING
|
|
|
42 |
01643-30623 |
WASHER
|
|
|
43 |
08038-00518 |
CAP
|
|
|
44 |
08038-02027 |
CAP
|
|
|
45 |
113-06-23160 |
LAMP
|
|
|
46 |
01643-31232 |
WASHER
|
|
|
47 |
114-06-23120 |
WIRE ASS'Y
|
|
|
48 |
08038-02027 |
CAP
|
|
|
49 |
08036-10814 |
CLIP
|
|
|
50 |
01010-31020 |
BOLT
|
|
|
51 |
01602-01030 |
WASHER,SPRING
|
|
|
52 |
08036-10810 |
CLIP
|
|
|
53 |
08036-01414 |
CLIP
|
|
|
54 |
01010-31025 |
BOLT
|
|
|
55 |
01602-01030 |
WASHER,SPRING
|
|
|
56 |
08036-10814 |
CLIP
|
