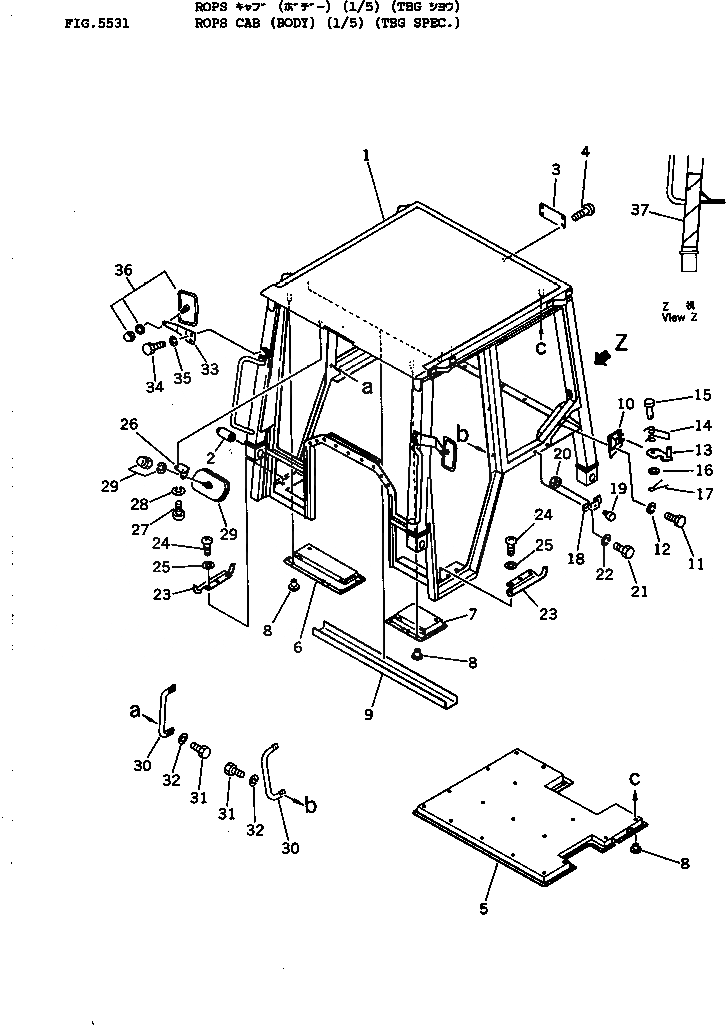

Запчасти кабина rops (кузов) (/) (спец-я tbg) погрузчики гусеничные d31q-18 s/n 40001-up Komatsu



1 113-X79-4111 ROPS CAB
1 113-X79-4110 ROPS CAB
1 113-Y79-1320 CATCHER
2 195-978-1311 ISOLATOR,VIBRATION
3 09620-20200 PLATE, NAME,(GERMAN)
4 04418-13060 SCREW
5 113-Y79-2280 PAD
6 113-Y79-2230 PAD
7 113-Y79-2240 PAD
8 120-Y78-4550 BUTTON
9 113-Y78-1340 LEATHER
10 113-X79-1681 BRACKET,L.H.
10 113-X79-1691 BRACKET,R.H.
11 01010-51016 BOLT
12 01602-21030 WASHER,SPRING
13 113-X79-2510 STOPPER,L.H.
13 113-X79-2520 STOPPER,R.H.
14 135-57-12230 SPRING
15 04205-11035 PIN
16 01641-21016 WASHER
17 04050-13018 PIN,COTTER
18 113-X79-2180 PLATE
19 205-54-63460 STOPPER
20 01580-10806 NUT
21 01010-51025 BOLT
22 01602-21030 WASHER,SPRING
23 113-Y79-1370 COVER,L.H.
23 113-Y79-1380 COVER,R.H.
24 01220-40416 SCREW
25 01642-20405 WASHER
26 113-Y79-2220 PLATE
27 01220-40616 SCREW
28 01602-20619 WASHER,SPRING
29 362-54-16110 MIRROR
30 113-Y79-2530 HANDLE
31 01010-51025 BOLT
32 01602-21030 WASHER,SPRING
33 113-C44-1211 PLATE
34 01010-51020 BOLT
35 01602-21030 WASHER,SPRING
36 362-54-16110 MIRROR
37 113-Y79-4310 MARK,L.H.
37 113-Y79-4320 MARK,R.H.
