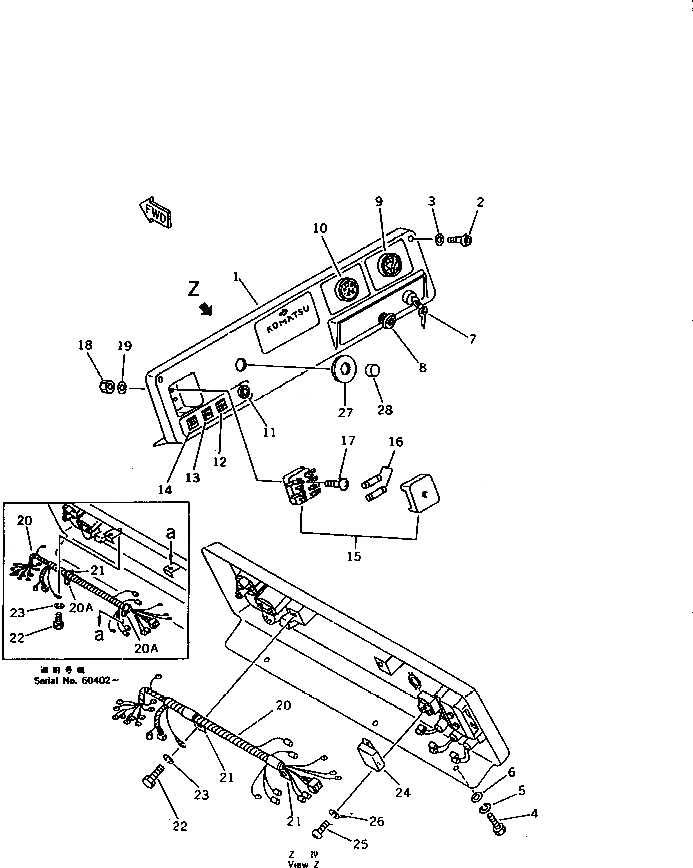

Запчасти панель приборов (для педаль рулев. управление) бульдозеры гусеничные d21s-6 s/n 60001-up (domestic version(hydoroshift transmission)) Komatsu
|
|
1 |
113-06-42111 |
PANEL
|
|
|
1 |
113-06-42110 |
PANEL
|
|
|
2 |
23S-06-14990 |
SCREW
|
|
|
3 |
362-06-21140 |
WASHER
|
|
|
4 |
01010-51035 |
BOLT
|
|
|
5 |
01602-21030 |
WASHER,SPRING
|
|
|
6 |
01643-31032 |
WASHER
|
|
|
7 |
08086-10000 |
SWITCH,STARTING
|
|
|
8 |
08061-60011 |
SWITCH,LAMP
|
|
|
9 |
103-06-32280 |
GAUGE,WATER TEMPERATURE
|
|
|
10 |
08687-22403 |
METER,SERVICE
|
|
|
11 |
600-815-1361 |
SIGNAL,GLOW
|
|
|
12 |
103-06-32260 |
LAMP, INDICATOR,FUEL
|
|
|
12 |
08111-11230 |
BULB
|
|
|
13 |
103-06-32250 |
LAMP, INDICATOR,ENGINE OIL PRESSURE
|
|
|
13 |
08111-12430 |
BULB, 3W
|
|
|
14 |
103-06-32240 |
LAMP, INDICATOR,CHARGE
|
|
|
14 |
08111-12430 |
BULB, 3W
|
|
|
15 |
08043-04000 |
BOX,FUSE
|
|
|
16 |
08040-01000 |
FUSE, 10A
|
|
|
16 |
08040-02000 |
FUSE, 20A
|
|
|
17 |
01220-40520 |
SCREW
|
|
|
18 |
01580-10504 |
NUT
|
|
|
19 |
01601-20513 |
WASHER,SPRING
|
|
|
20 |
103-06-32221 |
WIRE ASS'Y
|
|
|
20 |
103-06-32220 |
WIRE ASS'Y
|
|
|
20A |
203-06-56510 |
CLIP
|
|
|
21 |
08034-00310 |
BAND
|
|
|
21 |
08036-01814 |
CLIP
|
|
|
22 |
01010-51020 |
BOLT
|
|
|
22 |
01010-51020 |
BOLT
|
|
|
23 |
01602-21030 |
WASHER,SPRING
|
|
|
23 |
01602-21030 |
WASHER,SPRING
|
|
|
24 |
103-06-32270 |
REGULATOR
|
|
|
25 |
01220-40408 |
SCREW
|
|
|
26 |
01601-20410 |
WASHER,SPRING
|
|
|
27 |
103-06-32410 |
PLATE
|
|
|
28 |
09415-01610 |
CAP
|
