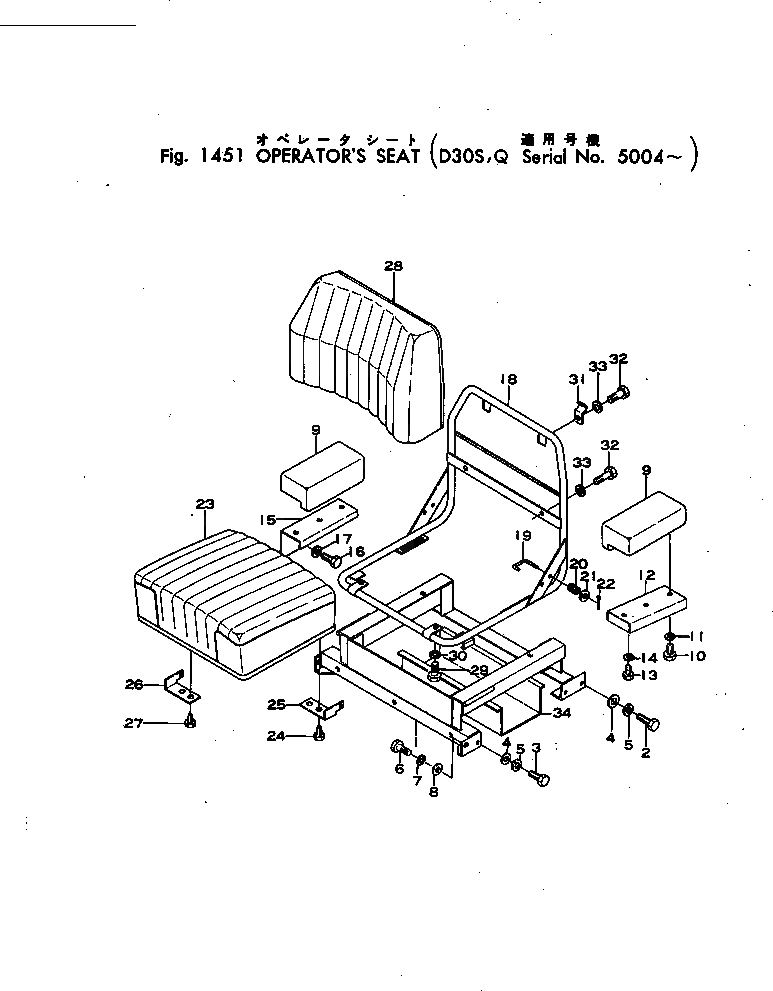

| 1 | 111-57-11162 | FRAME | |
| |1 | 111-57-11161 | FRAME | |
| 2 | 01040-31230 | BOLT | |
| |2 | 01040-31230 | BOLT | |
| 3 | 01040-31255 | BOLT | |
| 4 | 01643-01232 | WASHER | |
| |4 | 01643-01232 | WASHER | |
| 5 | 01602-01236 | WASHER | |
| |5 | 01602-01236 | WASHER | |
| 6 | 01040-31230 | BOLT | |
| 7 | 01602-01236 | WASHER | |
| 8 | 01643-01232 | WASHER | |
| 9 | 09402-00000 | REST,ARM | |
| 10 | 01000-30830 | BOLT | |
| 11 | 01602-00825 | WASHER | |
| 12 | 111-57-11123 | BRACKET | |
| 13 | 01040-31025 | BOLT | |
| 14 | 01602-01030 | WASHER | |
| 15 | 111-57-11135 | BRACKET | |
| |15 | 111-57-11134 | BRACKET | |
| 16 | 01040-31220 | BOLT | |
| 17 | 01602-01236 | WASHER | |
| |18 | 111-57-00012 | OPERATOR'S SEAT A. | |
| |18 | 111-57-00011 | OPERATOR'S SEAT A. | |
| |18 | 111-57-00010 | OPERATOR'S SEAT A. | |
| 18 | 111-57-11142 | FRAME | |
| |18 | 111-57-11141 | FRAME | |
| 19 | 111-57-11191 | LOCK | |
| 20 | 131-57-11140 | SPRING | |
| 21 | 111-57-11210 | SEAT | |
| 22 | 04050-02015 | PIN | |
| 23 | 111-57-11310 | SEAT | |
| 24 | 145-57-12330 | SCREW | |
| 25 | 111-57-11150 | BRACKET | |
| 26 | 111-57-11220 | BRACKET | |
| 27 | 145-57-12330 | SCREW | |
| 28 | 09401-10000 | SEAT | |
| 29 | 01000-30830 | BOLT | |
| 30 | 01602-00825 | WASHER | |
| 31 | 112-57-21120 | CLIP | |
| 32 | 01000-30830 | BOLT | |
| 33 | 01602-00825 | WASHER | |
| 34 | 111-57-11320 | BRACKET |
