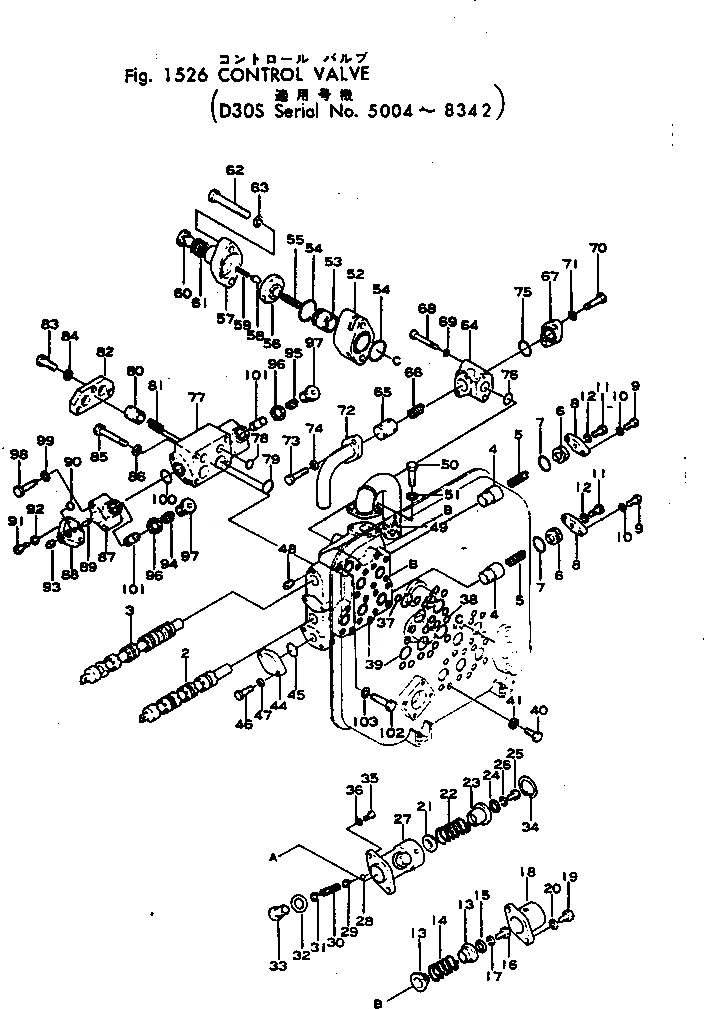

Запчасти управляющ. клапан(№-8) погрузчики гусеничные d30s-12 s/n 5004-up (chassis only) Komatsu

\|$0	111-60-00101	VALVE ASS'Y
\|$1	111-60-00100	VALVE ASS'Y
1	145-60-12112	BODY
2	145-60-12151	SPOOL
2	145-60-12150	SPOOL
3	145-60-32310	SPOOL
3	145-60-12311	SPOOL
4	170-78-14120	VALVE
5	170-78-14130	SPRING
6	145-60-12120	SEAT
7	07000-13035	O-RING (KIT)
8	170-78-14150	PLATE
9	01040-31235	BOLT
10	01602-01236	WASHER
11	01000-30825	BOLT
12	01602-00825	WASHER
13	170-78-14181	SPACER
14	145-60-12170	SPRING
15	170-78-14210	WASHER
16	01040-31222	BOLT
17	01602-01236	WASHER
18	145-60-12160	RETAINER
19	01040-31235	BOLT
20	01602-01236	WASHER
21	145-60-12330	SPACER
22	145-60-12340	SPRING
23	145-60-12350	SPACER
24	170-78-14210	WASHER
25	01040-31222	BOLT
26	01602-01236	WASHER
27	145-60-12361	RETAINER
28	04260-01270	BALL
29	145-60-12371	SPACER
30	131-60-42160	SPRING
31	145-60-12390	SHIM, 0.5MM (KIT)
32	145-60-12420	LOCK
33	145-60-12411	RETAINER
34	04065-06020	RING
35	01040-31235	BOLT
36	01602-01236	WASHER
37	07000-12018	O-RING (KIT)
38	07000-12015	O-RING (KIT)
39	07000-23045	O-RING (KIT)
40	01040-31230	BOLT
41	01602-01236	WASHER
44	111-60-12310	FLANGE
45	07000-13048	O-RING (KIT)
46	01040-31445	BOLT
47	01602-01442	WASHER
48	07043-00415	PLUG
49	111-60-12320	BUFFLE
50	01040-31440	BOLT
51	01602-01442	WASHER
\|$53	140-60-00034	RELIEF VALVE ASS'Y,RELIEF
\|$54	135-60-00080	HOUSING ASS'Y
52	135-60-12120	HOUSING
53	135-60-12220	VALVE
54	07000-23048	O-RING (KIT)
55	170-64-12730	SPRING
56	135-60-12142	SEAT
57	135-60-12132	BODY
58	135-60-12152	VALVE
59	135-60-12161	SPRING
60	135-60-12181	PLUG
61	170-64-00100	SHIM ASS'Y (KIT)
61		SHIM, 0.1MM
61		SHIM, 0.2MM
61		SHIM, 0.5MM
61		SHIM, 1.0MM
62	01041-31405	BOLT
63	01602-01442	WASHER
\|$71	145-60-00111	VALVE ASS'Y,VACUUM CHECK
64		HOUSING
65		VALVE
66	170-78-14380	SPRING
67	145-60-32650	COVER
68	01041-31405	BOLT
69	01602-01442	WASHER
70	01040-31245	BOLT
71	01602-01236	WASHER
72	145-60-12460	TUBE
73	01040-31240	BOLT
74	01602-01236	WASHER
75	07000-03048	O-RING (KIT)
76	07000-03038	O-RING (KIT)
\|$85	131-60-00352	VALVE ASS'Y,VACUUM CHECK
77		HOUSING
78	07000-13038	O-RING (KIT)
78	07000-03038	O-RING (KIT)
79	07000-13042	O-RING (KIT)
80		VALVE
81	170-78-14380	SPRING
82	145-60-12450	COVER
83	01041-31420	BOLT
84	01602-01442	WASHER
85	01041-31400	BOLT
86	01602-01442	WASHER
\|$97	131-60-00360	VALVE ASS'Y,(FOR TILT)
\|$98	111-60-00110	VALVE ASS'Y,(FOR DUMP)
87		HOUSING
88	145-60-12520	COVER
89	141-60-12530	PISTON
90	07000-12015	O-RING (KIT)
91	01040-31045	BOLT
92	01602-01030	WASHER
93	141-60-19220	PLUG
94	141-60-12562	SPRING,(FOR DUMP)
95	141-60-12571	SPRING,(FOR TILT)
96	141-60-12580	NUT
97	141-60-12590	PLUG
98	01040-31270	BOLT
99	01602-01236	WASHER
100	07000-23035	O-RING (KIT)
100	07000-03035	O-RING (KIT)
101		VALVE
102	01040-31450	BOLT
103	01602-01442	WASHER
