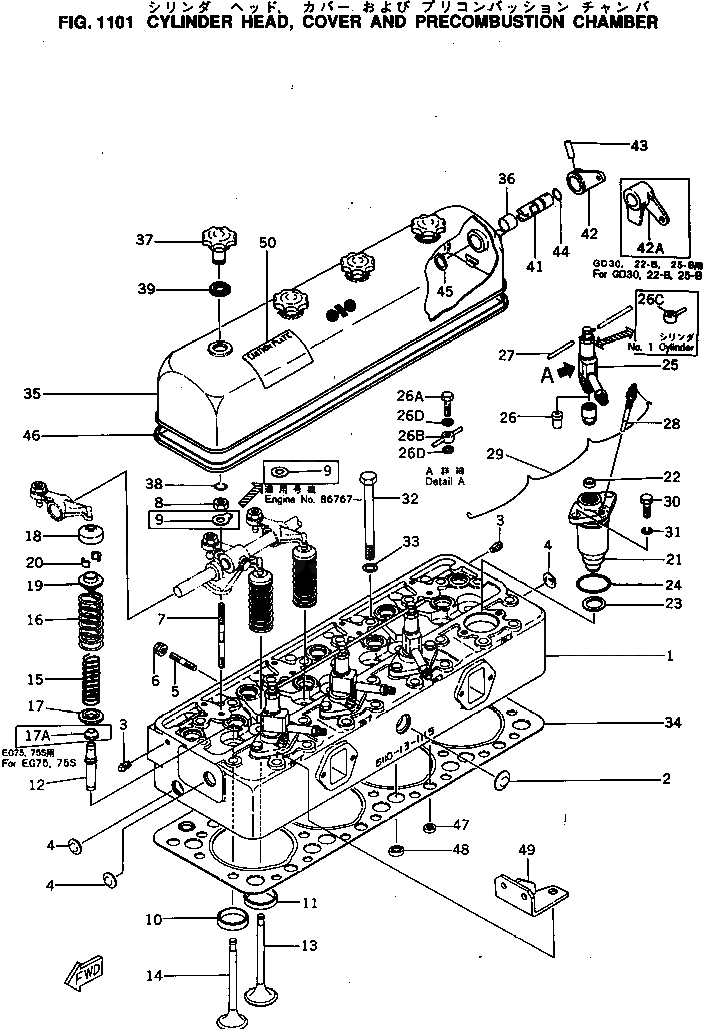

Запчасти головка цилиндров¤ крышкаand precombustion камера двигатели 4d120-11g s/n 50024-up Komatsu



|$0 6110-10-1027 CYLINDER HEAD A.
|$1 6110-10-1026 CYLINDER HEAD A.
|$$3 (6110-10-1027,6110-13-2133)
|$3 6110-10-1025 CYLINDER HEAD A.
|$4 6110-10-1024 CYLINDER HEAD A.
|$5 6110-10-1023 CYLINDER HEAD A.
|$6 6110-10-1022 CYLINDER HEAD A.
|$7 6110-10-1021 CYLINDER HEAD A.
|$8 6110-10-1126 CYLINDER HEAD A.
|$9 6110-10-1124 CYLINDER HEAD A.
|$$11 (6110-10-1126,6110-13-2133)
|$11 6110-10-1123 CYLINDER HEAD A.
|$12 6110-10-1122 CYLINDER HEAD A.
|$13 6110-10-1121 CYLINDER HEAD A.
|$14 6110-10-1120 CYLINDER HEAD A.
1 HEAD,CYLINDER
1 HEAD,CYLINDER
1 HEAD,CYLINDER
1 HEAD,CYLINDER
1 HEAD,CYLINDER
2 07046-13520 PLUG
2 07046-13520 PLUG
3 07043-00108 PLUG
3 07042-00108 PLUG
4 07046-13020 PLUG
4 07046-13020 PLUG
5 01140-71035 STUD
5 01140-31035 STUD
5 01140-31030 STUD
6 6110-11-1190 NUT
7 6110-11-1151 STUD
8 01580-01008 NUT
9 01643-31032 WASHER
9 01650-21012 WASHER
10 6110-11-1171 SEAT,EXHAUST (STD)
10 6110-11-1170 SEAT,EXHAUST (STD)
10 6110-19-1171 SEAT, 0.25MM,EXHAUST (OS)
10 6110-19-1170 SEAT, 0.25MM,EXHAUST (OS)
10 6110-18-1171 SEAT, 0.50MM,EXHAUST (OS)
10 6110-18-1170 SEAT, 0.50MM,EXHAUST (OS)
11 6110-13-1181 SEAT,INTAKE (STD)
11 6110-11-1180 SEAT,INTAKE (STD)
11 6110-19-1181 SEAT, 0.25MM,INTAKE (OS)
11 6110-19-1180 SEAT, 0.25MM,INTAKE (OS)
11 6110-18-1181 SEAT, 0.50MM,INTAKE (OS)
11 6110-18-1180 SEAT, 0.50MM,INTAKE (OS)
12 6110-13-1311 GUIDE
12 6110-13-1310 GUIDE
13 6110-43-4110 VALVE,INTAKE
14 6110-43-4210 VALVE,EXHAUST
14 6110-41-4211 VALVE,EXHAUST
15 6112-43-4410 SPRING
15 6110-43-4410 SPRING
16 6112-43-4420 SPRING
16 6110-43-4420 SPRING
17 6110-43-4530 SEAT
17 6110-41-4530 SEAT
18 6110-41-4540 CAP
|$58 6110-40-4500 VALVE COTTER A.
19 SEAT
20 COTTER
|$61 6110-10-2203 CHAMBER ASS'Y
|$62 6110-10-2202 CHAMBER ASS'Y
|$63 6110-10-2201 CHAMBER ASS'Y
|$64 6110-10-2200 CHAMBER ASS'Y
21 CHAMBER
21 CHAMBER
21 CHAMBER
21 CHAMBER
22 6110-11-2122 GASKET
23 6110-13-2813 GASKET (K1)
23 6110-13-2812 GASKET (K1)
23 6110-13-2811 GASKET (K1)
23 6110-11-2811 GASKET (K1)
24 6110-11-2820 O-RING (K1)
|$75 6110-13-3300 NOZZLE HOLDER A.,NO.2,3,4(ZEXEL)
|$76 6002005-4-00 NOZZLE HOLDER A.,NO.2,3,4(ZEXEL)
|$77 6110-13-3100 NOZZLE HOLDER A.,NO.2,3,4(NIPPON DENSO)
|$78 6002006-4-00 NOZZLE HOLDER A.,NO.2,3,4(NIPPON DENSO)
|$79 6110-13-3400 NOZZLE HOLDER A.,NO.1(ZEXEL)
|$80 6002005-5-00 NOZZLE HOLDER A.,NO.1(ZEXEL)
|$81 6110-13-3200 NOZZLE HOLDER A.,NO.1(NIPPON DENSO)
|$82 6002006-5-00 NOZZLE HOLDER A.,NO.1(NIPPON DENSO)
25 6110-13-3210 HOLDER,NO.2,3,4(ZEXEL)
25 6002005-4-10 HOLDER,NO.2,3,4(ZEXEL)
25 6110-13-3110 HOLDER,NO.2,3,4(NIPPON DENSO)
25 6002006-4-10 HOLDER,NO.2,3,4(NIPPON DENSO)
25 6110-13-3210 HOLDER,NO.1(ZEXEL)
25 6002005-5-10 HOLDER,NO.1(ZEXEL)
25 6110-13-3110 HOLDER,NO.1(NIPPON DENSO)
25 6002006-5-10 HOLDER,NO.1(NIPPON DENSO)
26 6002001-1-11 NOZZLE,(ZEXEL)
26 6002000-1-20 NOZZLE,(NIPPON DENSO)
26A 6127-11-3150 BOLT
26B 6110-13-3270 JOINT,NO.2,3,4
26C 6110-13-3280 JOINT,NO.1
26D 6127-11-3160 GASKET (K1)
27 6110-71-5312 PIPE
28 600-815-2650 PLUG,(BROWN)
28 600-815-2310 PLUG,(RED)
|$$101 (600-815-2650,600-815-3710)
28 6110-13-2511 PLUG
|$$103 (600-815-2650,600-815-3710)
28 6110-13-2510 PLUG
29 6110-83-4110 WIRE
30 6110-13-2133 BOLT
30 6110-13-2132 BOLT
30 6110-13-2131 BOLT
30 6110-13-2130 BOLT
30 01010-31235 BOLT
31 01602-01236 WASHER
32 6110-13-1612 BOLT
32 6110-13-1611 BOLT
32 6110-13-1610 BOLT
33 6110-11-1620 WASHER
34 6110-13-1810 GASKET (K1)
34 6110-11-1811 GASKET (K1)
|$117 6110-14-8301 HEAD COVER ASS'Y
|$118 6110-14-8300 HEAD COVER ASS'Y
35 6110-13-8110 COVER
36 6110-13-8491 BUSHING
36 6110-13-8490 BUSHING
37 6110-11-8122 NUT
38 6110-11-8130 RING
39 6110-11-8820 WASHER (K1)
41 6110-13-8410 SHAFT
42 6110-14-8430 LEVER
43 04025-00640 PIN
44 07000-02018 O-RING (K1)
45 04064-02212 RING
46 6110-11-8811 GASKET (K1)
47 6110-23-2710 FERRULE (K1)
47 6110-21-2711 FERRULE (K1)
48 6110-21-2721 FERRULE (KIT)
50 6110-83-2980 PLATE, CAUTION,(A)
